ABB - Low Voltage Drives RTAC-01-KIT - The Pulse Encoder Interface module offers a differential or single ended interface for a digital pulse encoder. The module is capable of operating from either a 15 or 24VDC signal with a max frequency of 200kHz. This option uses 55 mA of the available 250 mA power supply. When the drive’s internal power supply is used to power the encoder, additional options may not be installed. Check the encoder’s power supply requirements prior to installation.
ABB - Low Voltage Drives

RTAC-01-KIT

Alternate Item Number: 64610805

UPC: 662348077276

Contact for Pricing

Overview

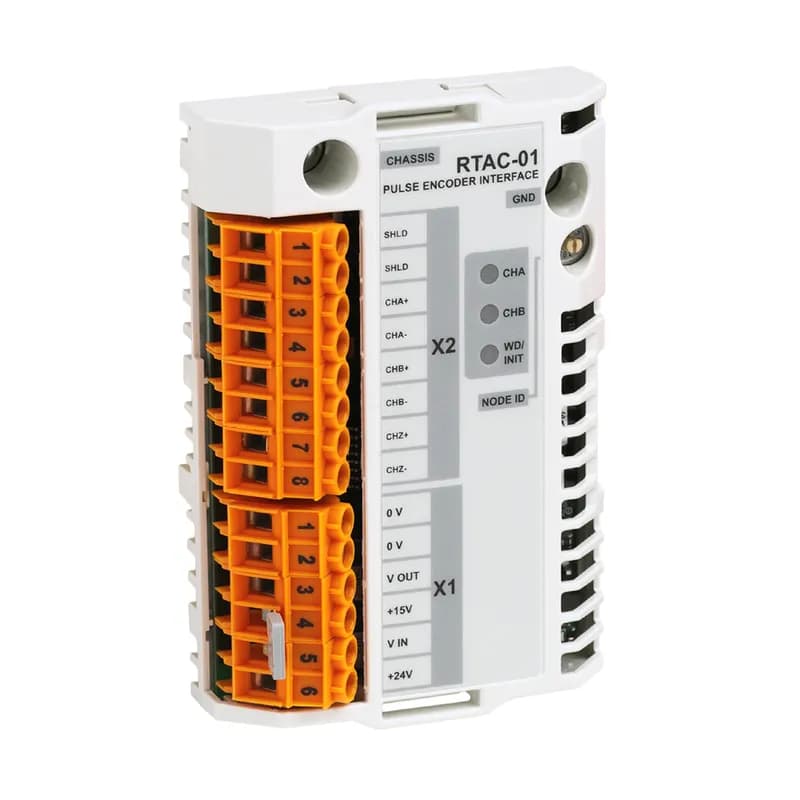

The ABB RTAC-01-KIT Pulse Encoder Interface Module provides a robust differential or single-ended interface for digital pulse encoders, enabling precise motion control in industrial automation systems. Designed for compatibility with ABB Low Voltage Drives, this module supports encoder signals at 15V or 24VDC with a maximum frequency of 200kHz, ensuring high-speed data acquisition for demanding applications. The module consumes 55mA from the available 250mA power supply, making it energy-efficient while maintaining reliable performance. When powered by the drive’s internal supply, additional options may be restricted—always verify encoder power requirements before installation. The RTAC-01-KIT is ideal for applications requiring accurate position feedback, such as CNC machines, robotics, material handling systems, and conveyor belts. Its compact design and DIN rail mounting compatibility simplify integration into existing control panels. The module supports both differential and single-ended encoder signals, offering flexibility for various encoder types and wiring configurations. With a focus on precision and reliability, the RTAC-01-KIT ensures minimal signal distortion and high noise immunity, critical for maintaining system accuracy in noisy industrial environments. Compatible with a wide range of ABB drives and automation systems, this module is a cost-effective solution for upgrading or retrofitting encoder interfaces without extensive system redesign.
  • Differential or single-ended encoder interface
  • Supports 15V or 24VDC input with 200kHz max frequency
  • 55mA current consumption from 250mA power supply
  • Compact DIN rail mounting for easy integration
  • Compatible with ABB Low Voltage Drives

Similar Products

RTAC-03-KIT

You May Also Be Interested In

TTL incremental Pulse Encoder Interface module. The module is capable of operating at 24VDC signal with a max frequency of 200kHz. This option uses 55 mA of the available 250 mA power supply.

RTAC-03-KIT

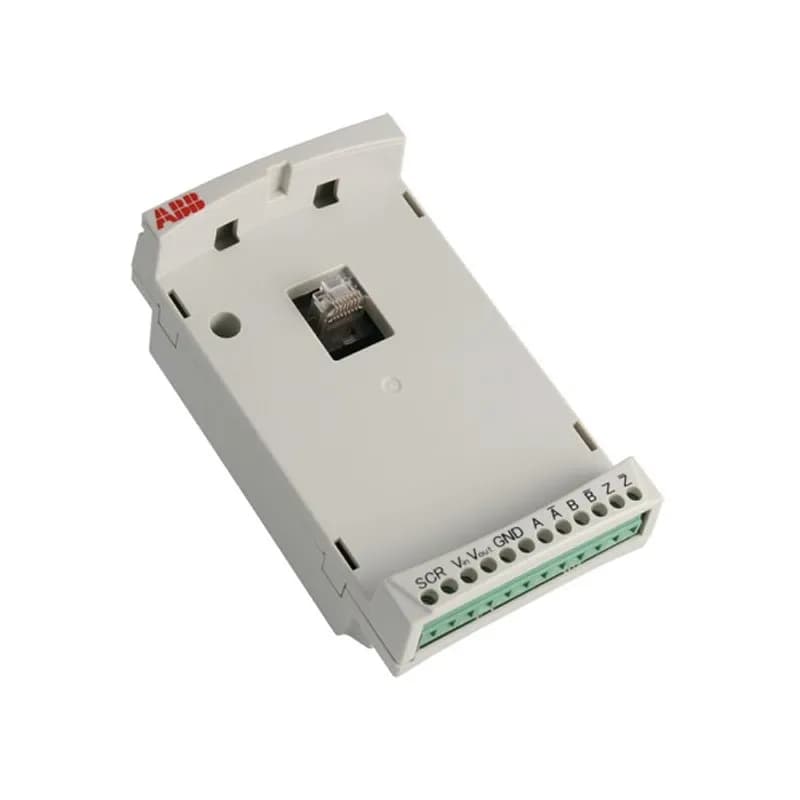

The Pulse Encoder Interface module offers a differential or single ended interface for a digital pulse encoder connection. The module is capable of operating from either a 15 or 24 VDC signal with a maximum frequency of 200kHz.

OTAC-01-KIT

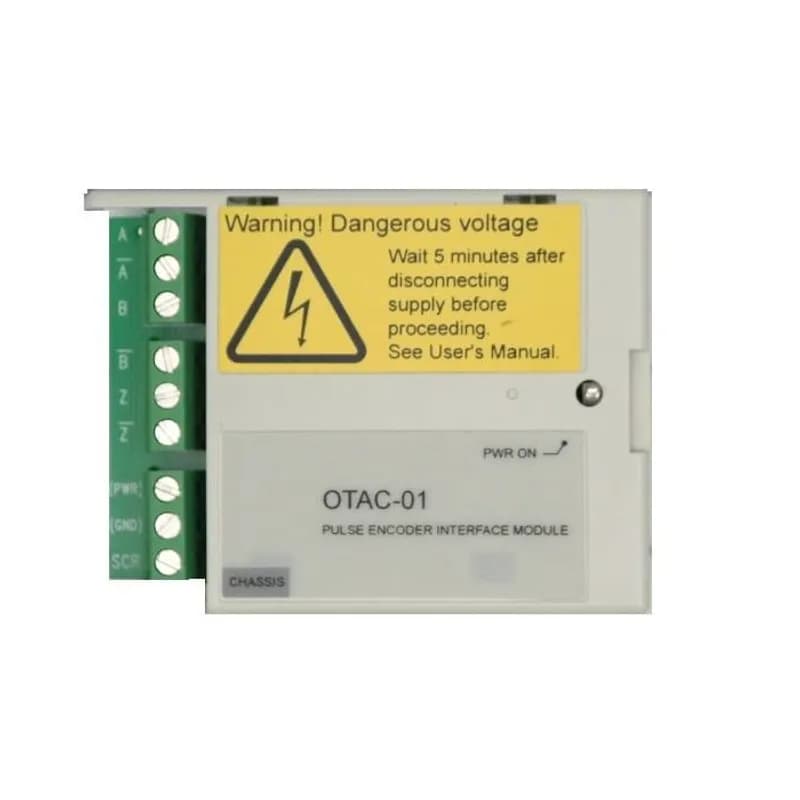

The Pulse Encoder Interface module offers a differential or single ended interface for a digital pulse encoder connection. The module is capable of operating from either a 15 or 24 VDC signal with a maximum frequency of 200kHz. This option can only be used with IP20 models.

MTAC-01

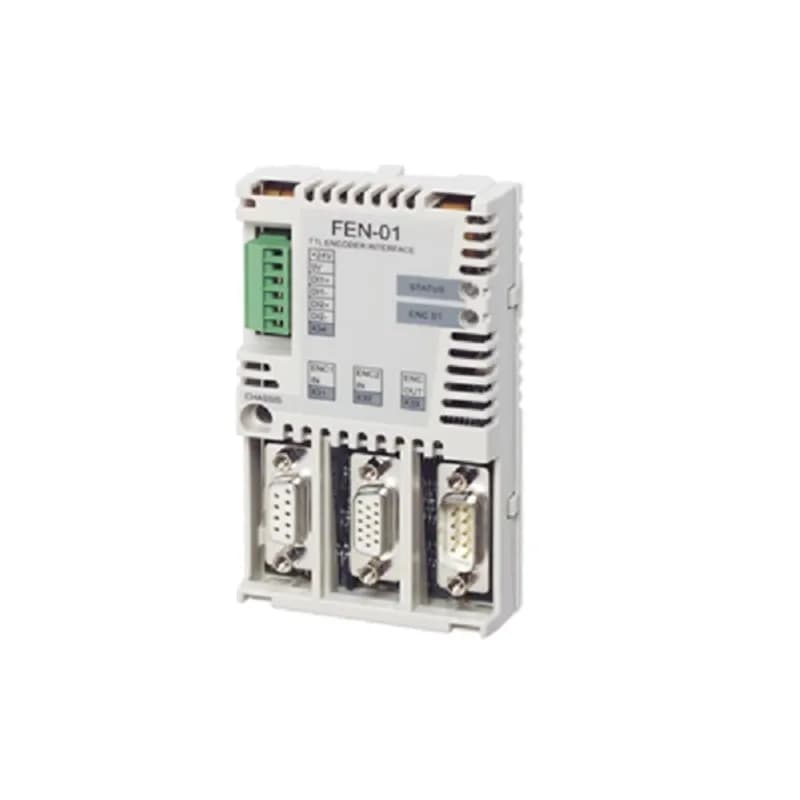

TTL incremental pulse encoder interface (with commutation signal and PTC thermistor support) - is capable of operating two differential encoders at 5.5 or 24 Vdc with a maximum frequency of 500 kHz. It also can emulate a TTL differential encoder output up to a maximum frequency of 500 kHz.

FEN-01-KIT

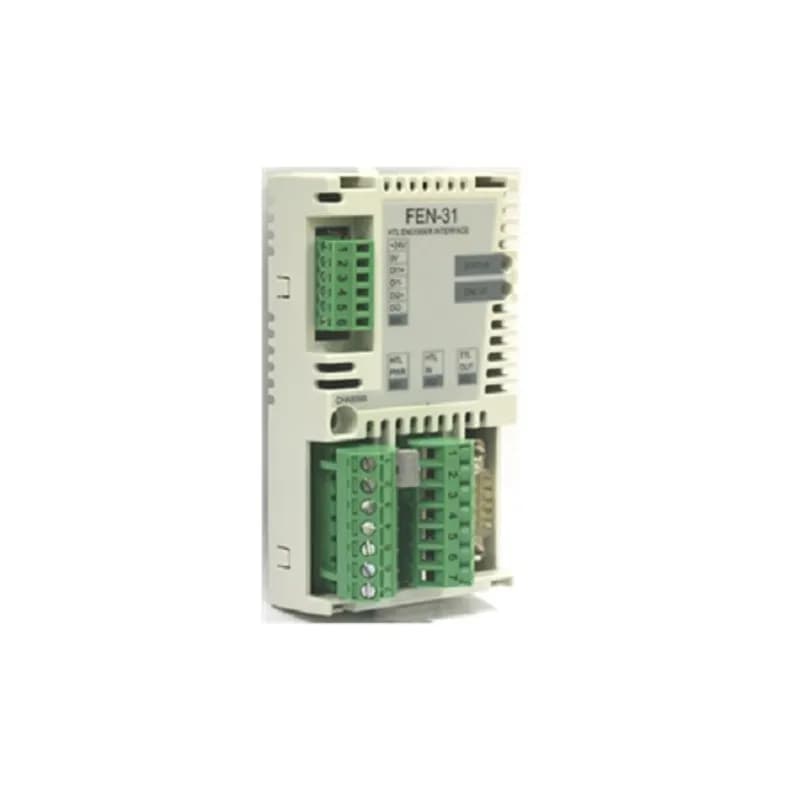

HTL incremental pulse encoder interface (with PTC/KTY support) - has one HTL encoder input and one TTL differential encoder emulator output. The HTL input supports differential push-pull, single-ended push-pull, open collector, and open emitter HTL encoders, up to 300 kHz at 15 or 24 Vdc. The TTL differential encoder output has a maximum frequency of 500 kHz.
