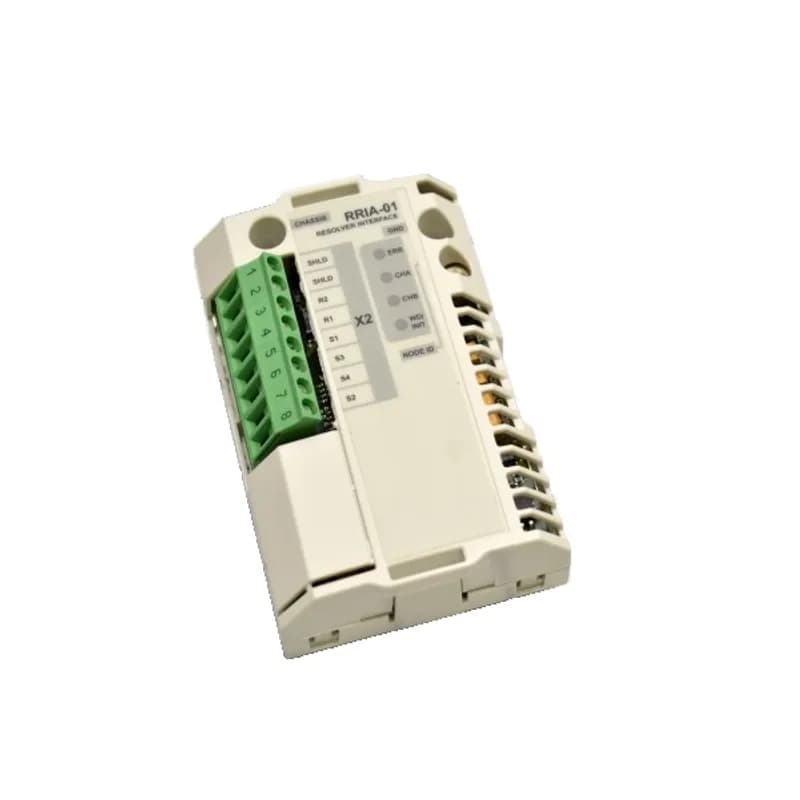

ABB - Low Voltage Drives RRIA-01-KIT - The Resolver Interface module offers interface for an analog resolver connection. A resolver may be used to obtain accurate speed and position (angle) feedback from a motor shaft. Application software supporting the Resolver interface, Positioning Control, Permanent Magnet Synchronous Machine. Limited Application SW Support, Check with factory
ABB - Low Voltage Drives

RRIA-01-KIT

Alternate Item Number: 68486408

UPC: 662348077252

Contact for Pricing

Overview

The ABB Low Voltage Drives RRIA-01-KIT Resolver Interface Module (SKU: RRIA-01-KIT) provides essential connectivity for analog resolver feedback devices. This module enables precise acquisition of motor shaft speed and position (angle) data, crucial for advanced motor control applications. It is designed to interface with motors equipped with resolvers, offering a reliable method for obtaining high-resolution feedback. The RRIA-01-KIT supports application software for Positioning Control and Permanent Magnet Synchronous Machines (PMSM). While it offers robust functionality for these applications, it's important to note that limited application software support is available. For specific compatibility or advanced configurations, consulting with the factory is recommended to ensure optimal integration and performance. This module is a key component for applications requiring accurate motor performance monitoring and control, leveraging the inherent precision of resolver feedback technology. Its UNSPSC code is 39122004, indicating its classification within electrical power control equipment.
  • Enables analog resolver connection for motor feedback
  • Provides accurate speed and position (angle) data
  • Supports Positioning Control application software
  • Compatible with Permanent Magnet Synchronous Machines (PMSM)
  • ABB Low Voltage Drives product with SKU RRIA-01-KIT

You May Also Be Interested In

The RSCM-01 resolver signal conditioning board can be used in conjunction with RRIA-01 board to double the resolver voltage. Externally mounted.

RSCM-01-KIT

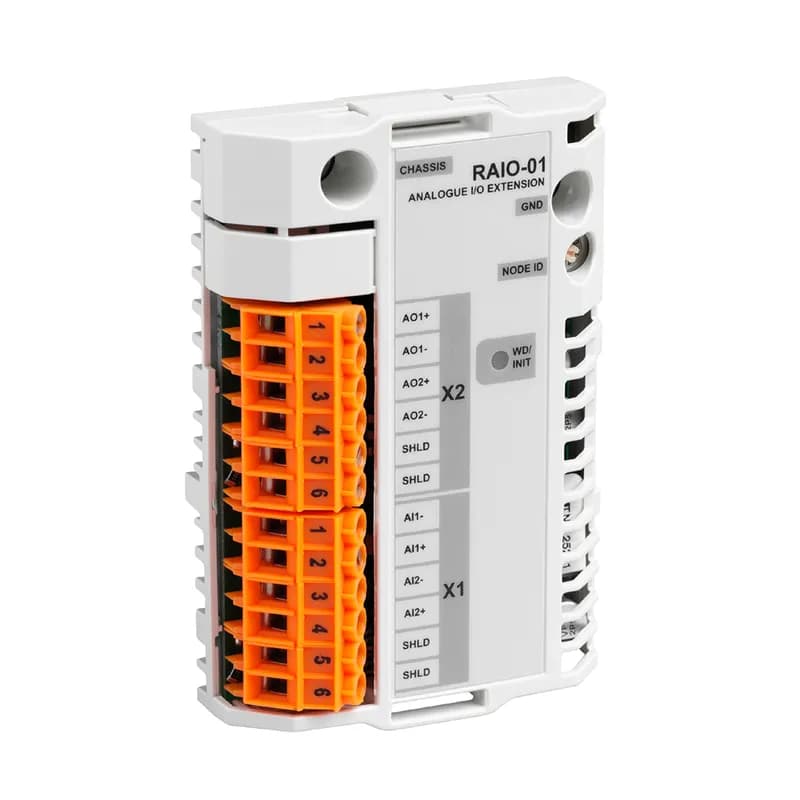

The analog I/O extension module offers two unipolar current (0(4) to 20 mA) or bipolar voltage (+/-0(2) to 0 V or +/-0 to 2 V) inputs and two unipolar current (0(4)-20 mA) outputs. Analog unipolar inputs are 12 bit resolution. Bipolar inputs are 11 bit resolution. Analog outputs are 12 bit resolution. The analog inputs and outputs are galvanically isolated as a group, from each other and the power supply.

RAIO-01-KIT

The Pulse Encoder Interface module offers a differential or single ended interface for a digital pulse encoder. The module is capable of operating from either a 15 or 24VDC signal with a max frequency of 200kHz. This option uses 55 mA of the available 250 mA power supply. When the drive’s internal power supply is used to power the encoder, additional options may not be installed. Check the encoder’s power supply requirements prior to installation.

RTAC-01-KIT
