ABB - Low Voltage Drives RDCO-01C-KIT - The RDCO-01 module includes the connectors for fiber optic DDCS channels CH0, CH1, CH2 and CH3. The usage of these channels is determined by the application but are normally assigned to the following: CH0 – overriding system (e.g. fieldbus adapter) - 10 MBd. CH1 – I/O extensions - 5MBd. CH2 – Master/Follower link - 10 MBd. CH3 – PC tools (such as DriveWare) - 10 MBd.
ABB - Low Voltage Drives

RDCO-01C-KIT

Alternate Item Number: 64606948

UPC: 662348077085

Contact for Pricing

Overview

The ABB RDCO-01C-KIT is a crucial component for expanding communication capabilities within ABB's Symphony Plus control systems. This module, manufactured by ABB Low Voltage Drives, provides essential fiber optic connectivity for the Digital Data Communication System (DDCS) channels. It features connectors for four distinct DDCS channels: CH0, CH1, CH2, and CH3, each supporting specific communication protocols and applications. Channel CH0 is typically assigned to overriding systems, such as fieldbus adapters, operating at a speed of 10 MBd. This ensures robust and high-speed communication with external control networks. Channel CH1 is designated for I/O extensions, operating at 5 MBd, allowing for the seamless integration of additional input and output modules to enhance system functionality. For master/follower configurations, Channel CH2 provides a dedicated link operating at 10 MBd, facilitating synchronized operation between controllers. Finally, Channel CH3 is reserved for PC tools, including ABB's DriveWare software, enabling efficient diagnostics, configuration, and monitoring at a speed of 10 MBd. The RDCO-01C-KIT is designed to enhance the flexibility and expandability of Symphony Plus controllers, enabling complex automation strategies and advanced system integration. Its robust fiber optic connections ensure reliable data transmission in industrial environments. This module is a key element for users looking to optimize their control system architecture and leverage the full potential of ABB's automation solutions. For detailed technical specifications and compatibility information, please refer to the official ABB Symphony Plus documentation or visit symphonyplushardwareselector.com.
  • Provides 4 fiber optic DDCS channels (CH0, CH1, CH2, CH3)
  • Supports various applications: overriding systems, I/O extensions, Master/Follower, PC tools
  • Channel speeds up to 10 MBd for high-speed data transfer
  • Enhances Symphony Plus controller communication and expandability
  • Manufactured by ABB Low Voltage Drives

Similar Products

RDCO-02C-KIT

RDCO-03C-KIT

RDIO-01-KIT

Voltage Rating: 24…250 VDC or 110…230 VAC

Current Rating: 30 mA

RDNA-01-KIT

You May Also Be Interested In

The RDCO-02 module includes the connectors for fiber optic DDCS channels CH0, CH1, CH2 and CH3. The usage of these channels is determined by the application but are normally assigned to the following: CH0 – overriding system (e.g. fieldbus adapter) - 5 MBd. CH1 – I/O extensions - 5MBd. CH2 – Master/Follower link - 10 MBd. CH3 – PC tools (such as DriveWare) - 10 MBd.

RDCO-02C-KIT

The RDCO-03 module includes the connectors for fiber optic DDCS channels CH0, CH1, CH2 and CH3. The usage of these channels is determined by the application but are normally assigned to the following: CH0 – overriding system (e.g. fieldbus adapter) - 5 MBd. CH1 – I/O extensions - 5MBd. CH2 – Master/Follower link - 5 MBd. CH3 – PC tools (such as DriveWare) - 5 MBd.

RDCO-03C-KIT

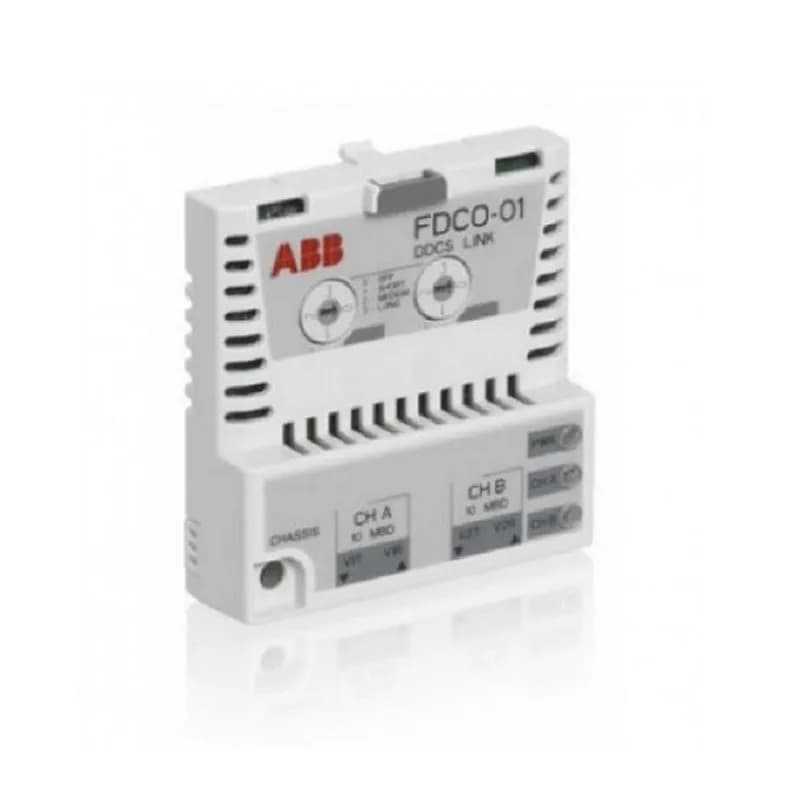

The FDCO 01 module includes the connectors for fiber optic DDCS channels CH0 and CH1. The usage of these channels is determined by the application but are normally assigned to the following: CH0 - overriding system (e.g. AC80M) - 10 MBd, CH1 - master/follower link - 10 MBd.

FDCO-01

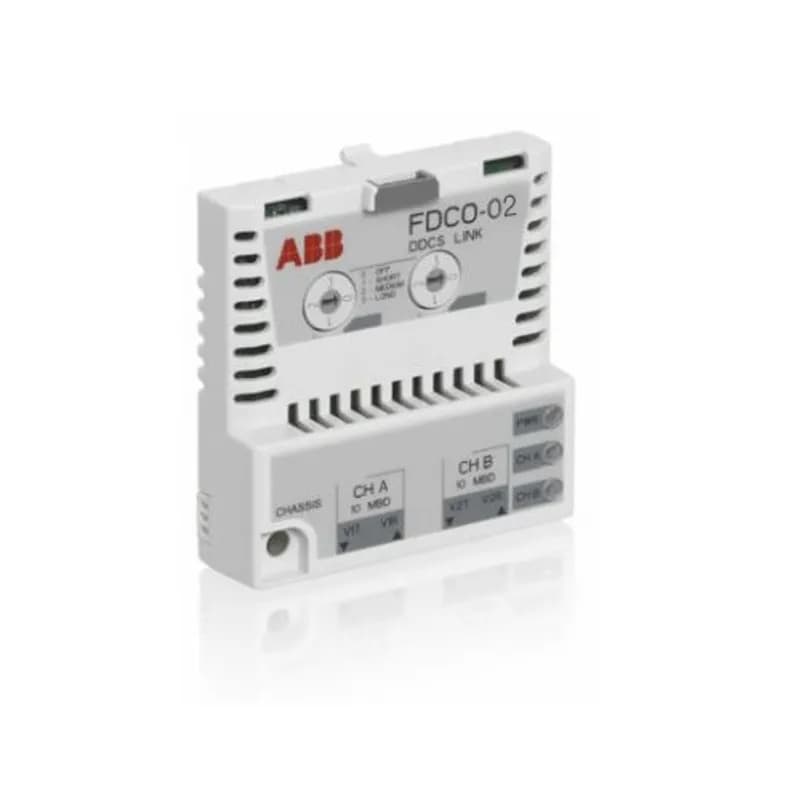

The FDCO 02 module includes the connectors for fiber optic DDCS channels CH0 and CH1. The usage of these channels is determined by the application but are normally assigned to the following: CH0 - overriding system (e.g. AC80) - 5 MBd, CH1 - master/follower link - 10 MBd.

FDCO-02

Fiber optic communication interface board and CDP312RD panel support. CH 0 - 5Mb - overriding system control (APC2, AC80, Nxxx moodule). CH 1 - 5Mb - is used for DDCS I/O extension. AIMA-01. CH 2 - 10Mb - Master-Follower link (drive-to-drive). CH 3 - 10Mb - PC tool such as DriveWindow. X19 is used for CDP312RD panel.

SDCS-COM-82
