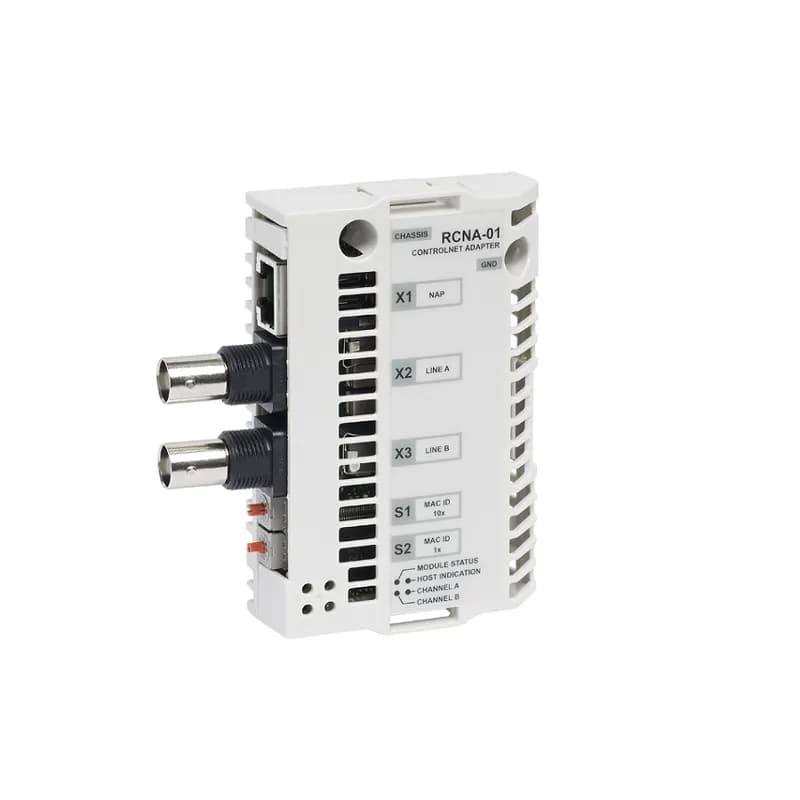

ABB Low Voltage Drives RCNA-01-KIT The ControlNet network uses a RG-6 quad shielded cable or fiber with support for media…
Alternate Item Number: 64751701
UPC: 662348077030
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
The ABB RCNA-01-KIT is a ControlNet Adapter module designed for industrial automation networks. This module specifically supports RG-6 quad shielded cable for its bus connection, offering a reliable communication pathway. ControlNet is known for its flexibility, supporting various topology options including bus, tree, and star configurations to adapt to diverse application requirements. The fieldbus operates at a speed of 5 Mbits/s, ensuring efficient data transfer within the network. The RCNA-01 module functions as a communication adapter, implementing the ControlNet protocol according to the ControlNet International specification. It is important to note that the RCNA-01 cannot originate connections independently; a scanner node is required to initiate communication with it. This adapter is a key component for integrating devices into a ControlNet network, facilitating robust and structured industrial communication. SKU: RCNA-01-KIT. Manufacturer: ABB - Low Voltage Drives. UNSPSC Code: 39122004. This module is essential for building or expanding ControlNet systems where RG-6 coax cable is the chosen physical medium.
- Supports RG-6 quad shielded cable for ControlNet bus connection
- Flexible topology options: bus, tree, and star
- Fieldbus speed of 5 Mbits/s
- Implements ControlNet protocol per international specification
- Requires scanner node to originate connections
