Overview
- N4X rated clear door screw cover
- Durable fiberglass construction
- Dimensions: 8 x 6 x 4 inches
- Integrated flange for easy mounting
- Made in the USA
Specifications
Application | Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides outstanding insulation and protection where equipment may be hosed down or be very wet. Ideal in applications with high temperatures or highly corrosive environments |
Brand Name | Hammond Mfg. |
Color | Gray |
Color | Clear |
Cubic Capacity | 208.455555 Cubic in |
Cubic Capacity | 208.455555 in3 |
Material | Fiberglass |
Material | Polyester Plastic |
Material Quality | Polyester Plastic |
Mounting | Wall |
Mounting Type | Flange |
NEMA Rating | type-3r, type-13, type-4x |
Nema Rating | Type 4X |
NEMA Rating | 13;3R;4X |
Series | N4X |
Size | 8 x 6 x 4 inches |
Size | 8.05 in x 6.27 in x 4.13 in |
Special Features | Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled. Enhanced UV inhibitors protect against outdoor weathering. Standard JIC sizes under 18" x 16". Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included. Cover fastened with captive stainless steel screws in threaded brass inserts. Enclosure available with clear Polycarbonate cover to 16" x 14". Captive oil resistant gasket provides a positive seal. Available with Polycarbonate flange or foot mount brackets for multi-directional mounting. Operating temperatures between 130C and -40C (266F to -40F). Impact index of 6.78J (5 ft/lb). For corrosion resistance information, please refer to table in the Technical Information section. |
Standard | csa, ul, ce |
Sub Brand | PJU Series |
Type | Type 4X Polyester Junction Box (Solid and Clear Cover) |
Package Dimensions (L x W x H) | 4.54 IN x 6.9 IN x 8.86 IN |
Package Dimensions (L x W x H) | 11.5316 cm x 17.526 cm x 22.5044 cm |
Package Weight (Imperial) | 6.000 L |
Package Weight (Metric) | 2.722 kg |

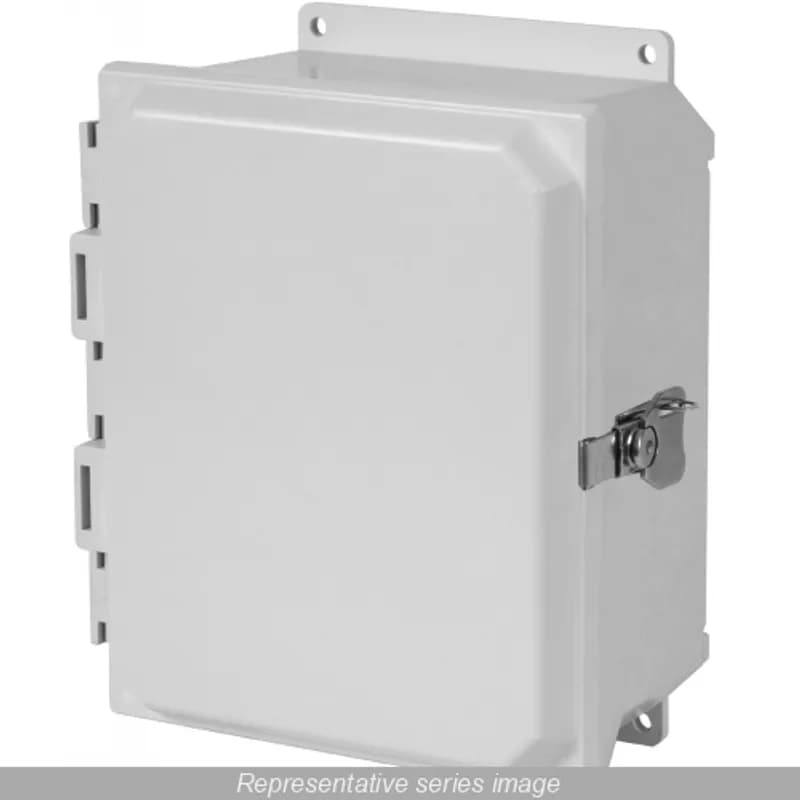

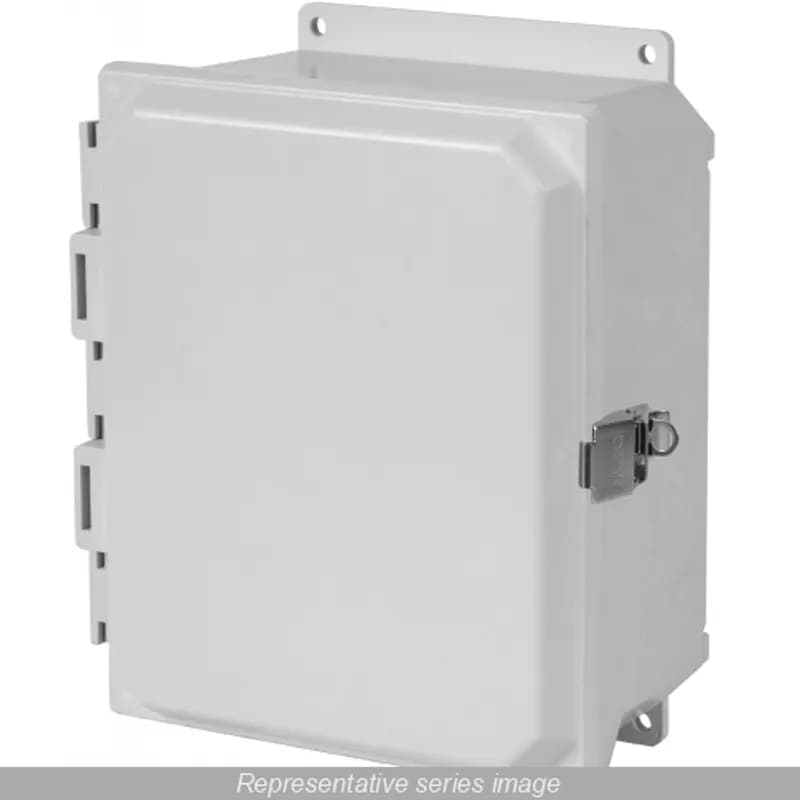

Similar Products
