Overview

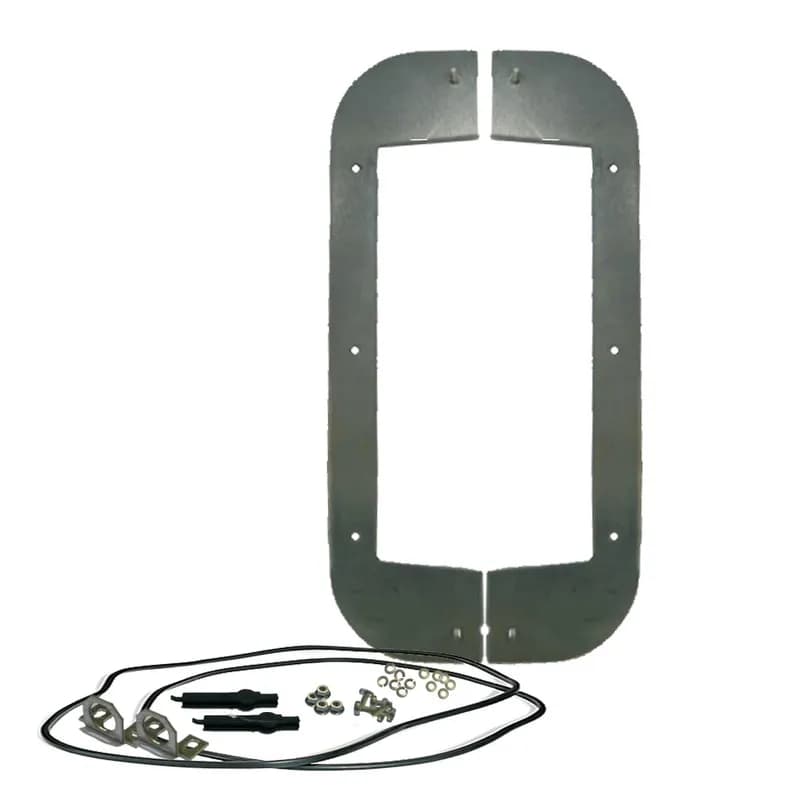

The ABB FMK-A-R1 Flange Mounting Kit (SKU: FMK-A-R1) is engineered for the ABB Low Voltage Drives ACS550 series. This kit facilitates the external mounting of the drive's heatsink, allowing for integration into third-party enclosures. It is specifically compatible with UL Type 1 and UL Type 12 (NEMA 1 and NEMA 12) enclosures, offering flexibility for custom industrial setups.
Key considerations for using the FMK-A-R1 include the removal of the drive cover, which consequently reduces the enclosure's protection rating to IP00. This makes the kit suitable for applications where the drive is housed within a protected third-party enclosure that provides the necessary environmental shielding. The R1 through R4 flange kits are designed for this purpose, ensuring proper heat dissipation outside the main enclosure.
This mounting solution is ideal for optimizing space within control cabinets and enhancing thermal management. It supports reliable operation of ACS550 drives in various industrial automation, HVAC, and machinery control applications where external cooling is a requirement or a preferred configuration. The FMK-A-R1 provides a practical method for adapting ABB drives to specific enclosure designs while adhering to NEMA standards.
- Enables external heatsink mounting for ACS550 drives
- Compatible with 3rd party UL Type 1 & 12 (NEMA 1 & 12) enclosures
- Requires drive cover removal, reducing protection to IP00
- Facilitates flexible integration into custom enclosures
- Optimizes space and thermal management in industrial applications
