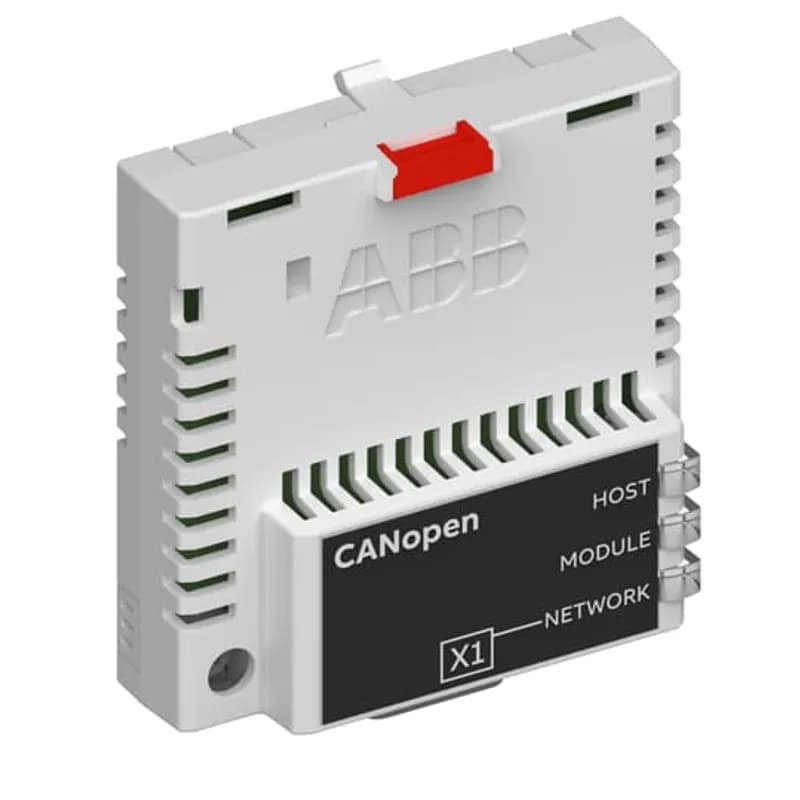

ABB - Low Voltage Drives FCAN-01-KIT - CANopen is a higher layer protocol based on the CAN (Control Area Network) serial bus system and the CAL (CAN Application Layer). CANopen assumes that the hardware of the connected device has a CAN transceiver and a CAN controller as specified in ISO 11898. The CANopen Communication Profile, CiA Ds301, includes both cyclic and event driven communication, which makes it possible to reduce the bus load to minimum while still maintaining extremely short reaction times. High communication performance can be achieved at relatively low baud rates, thus reducing EMC problems and cable costs. CANopen device profiles define both direct access to drive parameter and time critical process data communication. The FCAN-01 module fulfills CiA (CAN in Automation) standard DSP 402 (Drives and Motion Control).
ABB - Low Voltage Drives

FCAN-01-KIT

Alternate Item Number: 68469376

UPC: 662348075425

Documents & Media
Specification Sheet

Contact for Pricing

Overview

Enhance your industrial automation with the ABB FCAN-01-KIT, a specialized CANopen Communication Interface Module designed for seamless integration with ABB's AC 900F controllers. This module, identified by SKU FCAN-01-KIT, leverages the robust CANopen protocol, a higher-layer protocol built upon the CAN (Control Area Network) serial bus system and the CAL (CAN Application Layer). It adheres to the ISO 11898 standard for CAN transceivers and controllers, ensuring reliable and efficient data exchange. The FCAN-01 module specifically fulfills the CiA (CAN in Automation) standard DSP 402, the Device Profile for Drives and Motion Control. This compliance enables direct access to drive parameters and facilitates time-critical process data communication, crucial for optimizing motion control applications. The module features three independent CAN Bus channels (CAN 1, CAN 2, CAN 3), each electrically isolated from the system, providing enhanced safety and enabling redundant operation when paired with a second AC 900F controller. Data transmission and power supply are managed through an internal coupler bus, utilizing a dual-port RAM for efficient data exchange. The CI 910F interface supports transmission rates up to 1 MBit/s, with specific settings for rack-based I/O modules at 100 kBit/s or 500 kBit/s depending on bus length. Connectivity is established via a 9-pole D-SUB female connector. This module is compatible with PM 904F, PM 902F, or PM 901F CPU modules and supports up to 5 I/O racks. Its compact design includes five LEDs for status indication, drawing a current consumption of 90 mA and dissipating 1.9 W. For optimal performance, a software version 2016 or higher is mandatory on the AC 900F controller. Configuration is managed within the Freelance Engineering hardware structure, with detailed information available in the System Configuration, Hardware Structure, and AC 900F Engineering Manuals. The FCAN-01-KIT is an essential component for advanced motion control and data acquisition in demanding industrial environments.
  • CANopen Communication Interface Module (FCAN-01-KIT)
  • Fulfills CiA DSP 402 (Drives and Motion Control) standard
  • Three independent CAN Bus channels (CAN 1, CAN 2, CAN 3)
  • Supports transmission rates up to 1 MBit/s
  • 9-pole D-SUB female fieldbus connector

Specifications

Frame Size
0
Height
2.8 in
Length
1.06 in
Type
FCAN Drive
Weight
0.045 lb
Width
2.52 IN

Similar Products

FCNA-01

FCNA-01-KIT

Height: 3.23 in

Weight: 0.063 lb

Type: FCNA Drive

You May Also Be Interested In

CANopen is a higher layer protocol based on the CAN (Control Area Network) serial bus system and the CAL (CAN Application Layer). CANopen assumes that the hardware of the connected device has a CAN transceiver and a CAN controller as specified in ISO 11898.The CANopen Communication Profile, CiA DS 301, includes both cyclic and event driven communication, which makes it possible to reduce the bus load to minimum while still maintaining extremely short reaction times. High communication performance can be achieved at relatively low baud rates, thus reducing EMC problems and cable costs. CANopen device profiles define both direct access to drive parameter and time critical process data communication. The RCAN-01 module fulfills Cia (CAN in Automation) standard DSP 402 (Drives and Motion Control).

RCAN-01-KIT

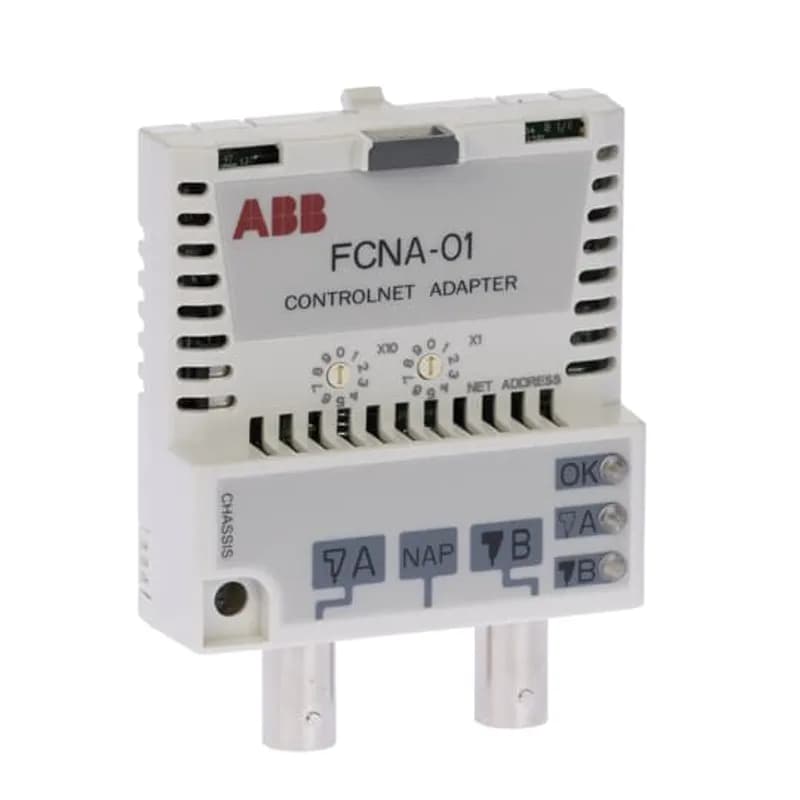

The FCNA 01 ControlNet adapter module enables the connection of the drive to a ControlNet network. ControlNet is a scheduled communication network designed for cyclic data exchange. With the FCNA 01 adapter module, the ControlNet network may employ either the ODVA AC/DC drive profile or the ABB Drives profile. Both are converted to the native profile (eg, DCU or FBA) by the adapter module. In addition, two Transparent modes, for 16-bit and 32-bit words respectively, are available. With the Transparent modes, no data conversion takes place.
