Contact for Pricing

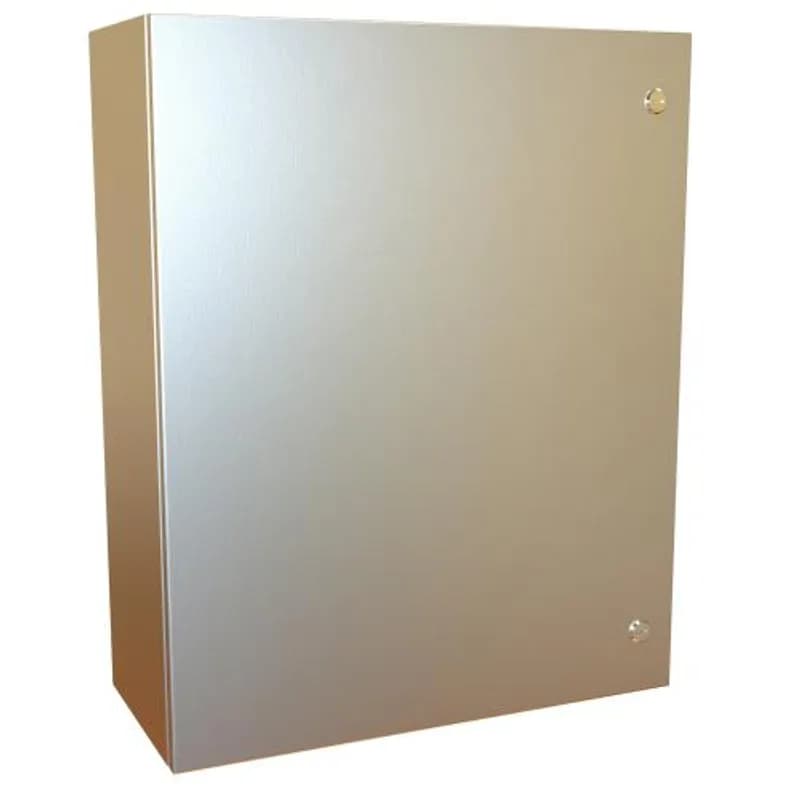

Overview
- Durable steel construction for robust protection
- Generous 30 x 24 x 6 inch internal dimensions
- Professional and resilient gray finish
- N4,12 rated for industrial environments
- Manufactured in the USA
Specifications
Application | Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications. Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation. A wide range of sizes and practical accessories make this product line a complete package. |
Brand Name | Hammond Mfg. |
Color | Gray |
Cubic Capacity | 4320 Cubic in |
Cubic Capacity | 4320 in3 |
Material | Steel |
Material | Mild Steel |
Material Quality | Mild Steel |
Mounting | Wall |
Nema Rating | N4,12 |
NEMA Rating | type-3r, type-4 |
NEMA Rating | 3R;4 |
Series | N4,12 Eclipse |
Size | 30x24x6 In |
Size | 30 in x 24 in x 6 in |
Special Features | Formed 14 or 16 gauge steel. Smooth, continuously welded seams ground smooth. Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options. Formed lip on enclosure to exclude flowing liquids and contaminants. Door latches feature the added safety of quarter turn slot requiring use of tool for opening. Doors may be easily removed for modifications and are interchangeable. Seamless poured-in place gasket. Collar studs provided for mounting inner panel. Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes. Bonding stud provided on door and grounding stud installed in enclosure. Hinges are constructed from 304 stainless steel. Hinge pins are stainless steel. Quarter turn latch and multi-point handle (key lockable) are zinc diecast with black epoxy finish. Door alignment guide provided on 36" wide enclosures. |
Standard | csa, ul, ce |
Sub Brand | Eclipse Series |
Type | N4,12 Eclipse encl. |
Package Dimensions (L x W x H) | 6.6 IN x 26.4 IN x 33 IN |
Package Dimensions (L x W x H) | 16.764 cm x 67.056 cm x 83.82 cm |
Package Weight (Imperial) | 54.000 L |
Package Weight (Metric) | 24.494 kg |
