Contact for Pricing

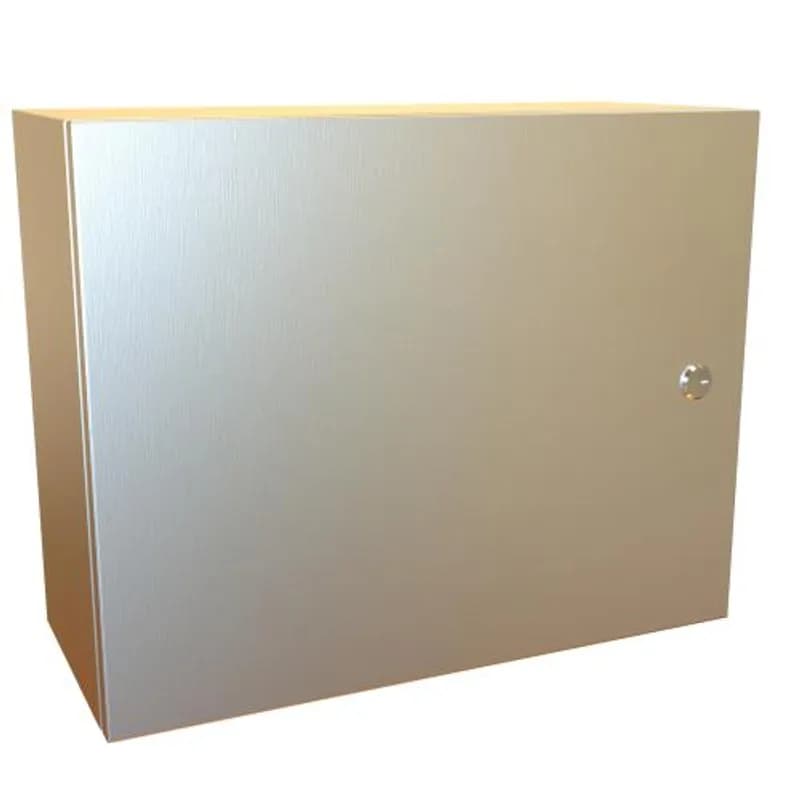

Overview
- Constructed from 304 stainless steel for superior corrosion resistance
- Dimensions: 16x20x6 inches for compact yet spacious installation
- Designed for industrial, outdoor, and marine applications
- Robust construction with precise engineering for durability
- Sleek, professional finish suitable for modern industrial settings
Specifications
Application | Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications. Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation. A wide range of sizes and practical accessories make this product line a complete package. |
Brand Name | Hammond Mfg. |
Color | Unpainted |
Cubic Capacity | 1920 in3 |
Cubic Capacity | 1920 Cubic in |
Material | Stainless Steel |
Material | 304 Stainless Steel |
Mounting | Wall |
NEMA Rating | type-3r, type-13, type-4x |
NEMA Rating | 13;3R;4X |
Series | N4X Eclipse |
Size | 16 in x 20 in x 6 in |
Size | 16x20x6 inches |
Special Features | Formed 14 or 16 gauge 304 or 316 stainless steel. Continuously welded seams ground smooth. Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options. Formed lip on enclosure to exclude flowing liquids and contaminants. Door latches feature the added safety of quarter turn slot requiring use of tool for opening. Doors may be easily removed for modifications and are interchangeable. Seamless poured-in place gasket. Collar studs provided for mounting inner panel. Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes. Bonding stud provided on door and grounding stud installed in enclosure. Stainless steel 3 point latching handle (where applicable). Stainless steel hinge pins and quarter turns. Door alignment guide provided on 36" wide enclosures. |
Standard | csa, ul, ce |
Sub Brand | Eclipse Series |
Type | N4X Eclipse Encl. |
Package Dimensions (L x W x H) | 6.6 IN x 22 IN x 17.6 IN |
Package Dimensions (L x W x H) | 16.764 cm x 55.88 cm x 44.704 cm |
Package Weight (Imperial) | 22.000 L |
Package Weight (Metric) | 9.979 kg |

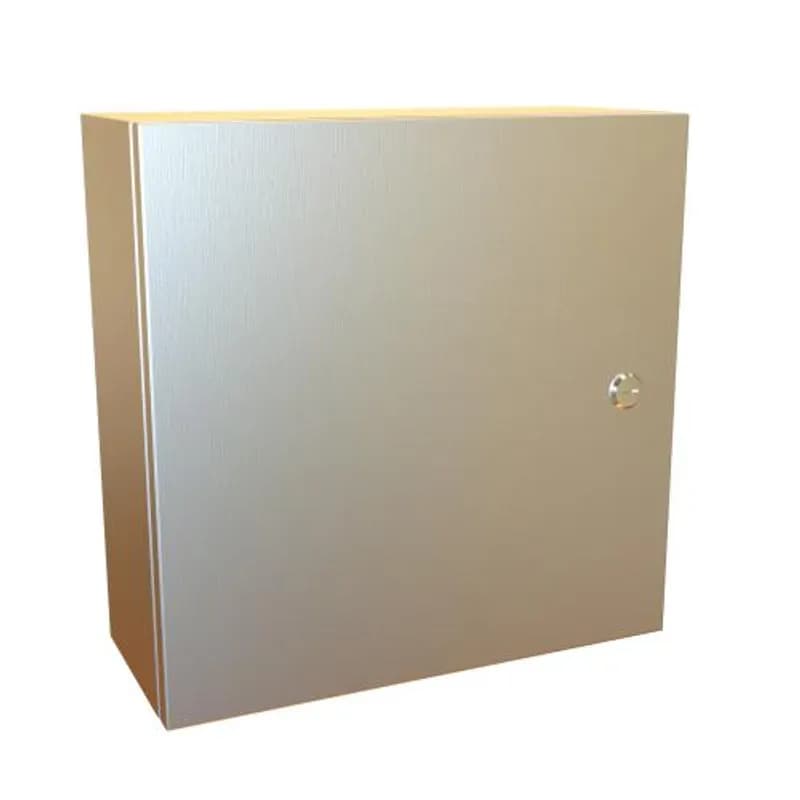

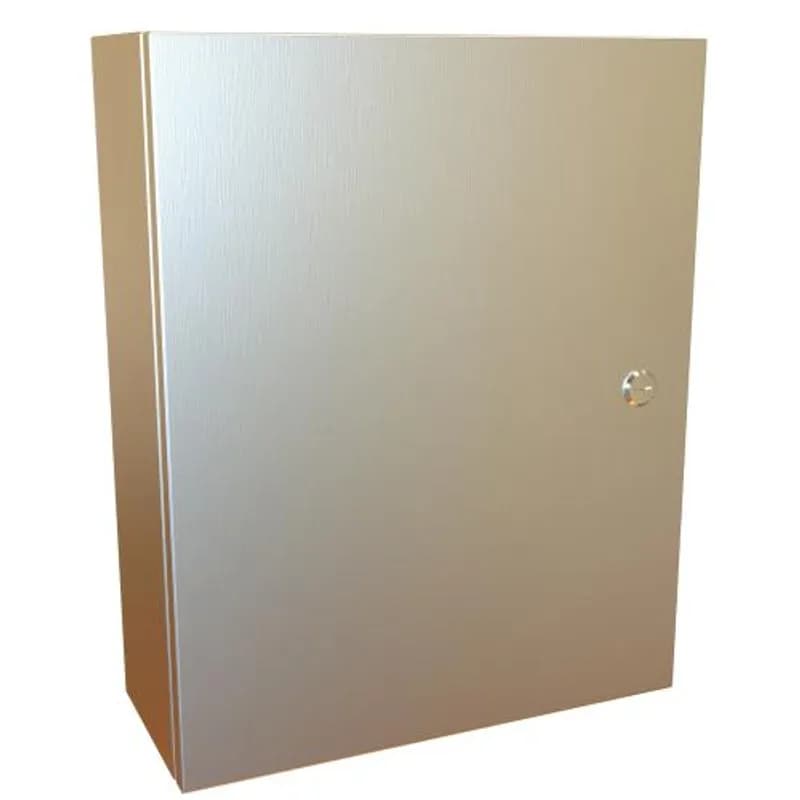

Similar Products
