ABB - Low Voltage Drives

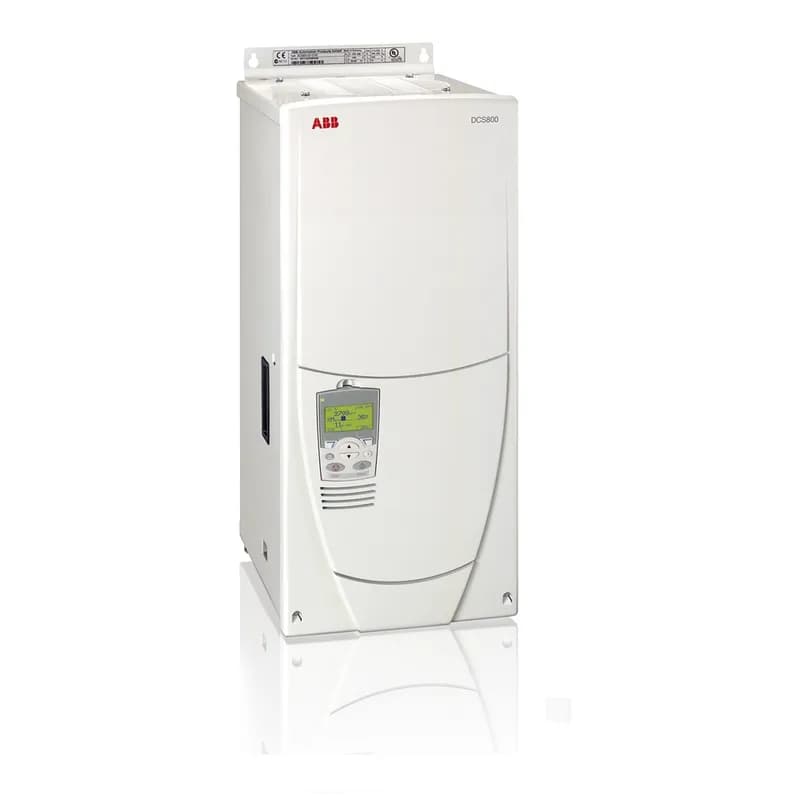

DCS800-S02-0350-05+S199
Alternate Item Number: 3AUA0000037104
UPC: 662348074725
Documents & Media
Contact for Pricing
Overview
The ABB DCS800-S02-0350-05+S199 is a high-performance 4-quadrant (reversing) drive designed for demanding industrial applications. With a power rating of 75 HP at 230 VAC and 200 HP at 460 VAC, this drive delivers exceptional efficiency and control. Featuring a robust 333A output current at both 240 VDC and 500 VDC, it ensures reliable operation in a wide range of voltage conditions. The wall-mount design with UL TYPE OPEN (IP00) rating provides flexibility in installation while maintaining safety and performance. Equipped with a drive-to-drive communication board and 3-phase input, this drive is ideal for applications requiring precise speed and torque control, such as conveyors, pumps, and industrial machinery. The compact dimensions (18.1 in x 10.6 in x 12.2 in) and lightweight (55 lbs) design make it easy to integrate into existing systems. Trust ABB's expertise in low-voltage drives for superior performance and durability in your industrial operations.
- 4-quadrant (reversing) drive for precise speed and torque control
- Power ratings: 75 HP at 230 VAC, 200 HP at 460 VAC
- High output current: 333A at 240 VDC and 500 VDC
- Wall-mount design with UL TYPE OPEN (IP00) rating for flexible installation
- Drive-to-drive communication board for seamless integration
Specifications
Connection Type | 3-Phase Input |
Current Rating | 333 A |
IP Rating | IP00 |
Mounting Type | Wall-mount |
Poles | 3-Phase |
Series | DCS800 |
Size | 18.1 in x 10.6 in x 12.2 in |
Voltage Rating | 230 VAC/240 VDC & 460 VAC/500 VDC |
Package Dimensions (L x W x H) | 21 in x 15 in x 15 in |
Package Dimensions (L x W x H) | 53.34 cm x 38.1 cm x 38.1 cm |
Package Weight (Imperial) | 62.000 L |
Package Weight (Metric) | 28.123 kg |
