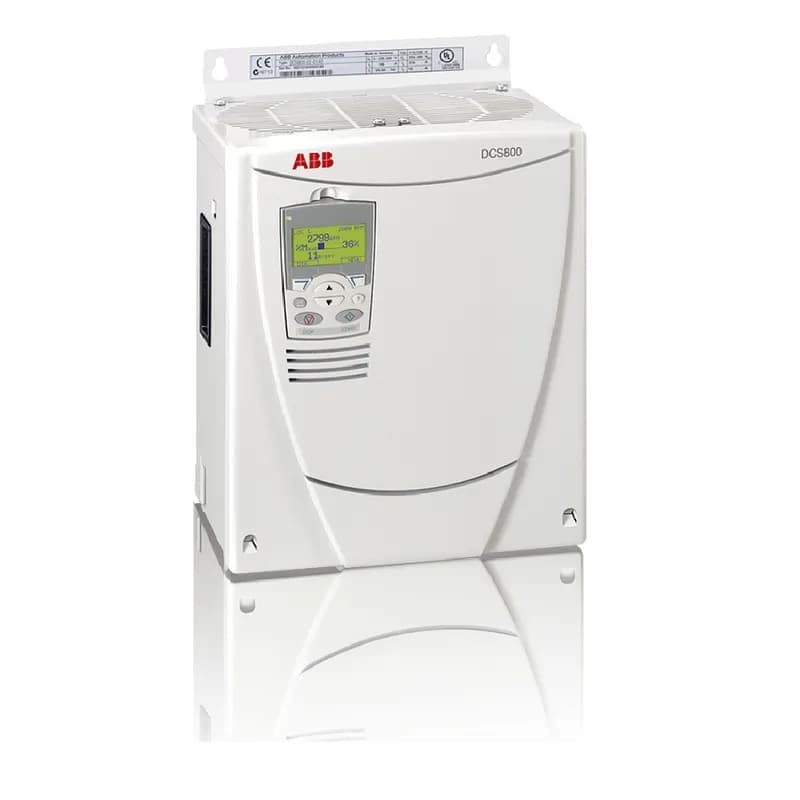

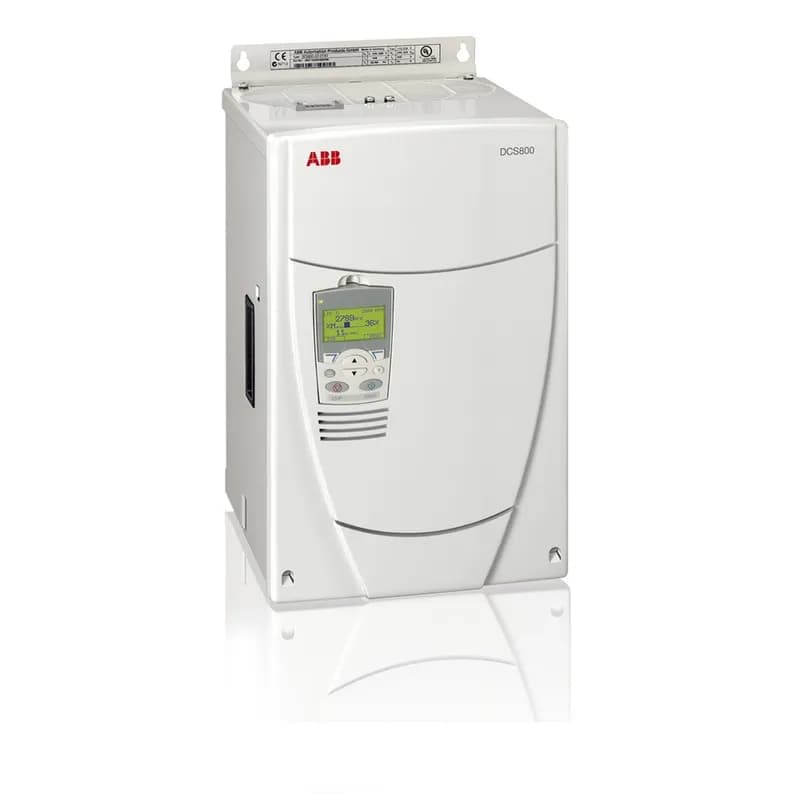

ABB - Low Voltage Drives DCS800-S02-0350-05 - MODULE DRIVE 4-QUADRANT (REVERSING), Product Family: DCS800, Horsepower: 75 HP @ 230 VAC / 200 HP @ 460 VAC, Output Current: 333 A @ 240 VDC / 333 A @ 500 VDC, Voltage: 230 VAC/240 VDC & 460 VAC/500 VDC, UL TYPE OPEN (IP00), Mounting: Wall-mount, 3-Phase Input, Frame: D3, Product HxWxD: 18.1 in x 10.6 in x 12.2 in, Product Weight: 55 lbs
ABB - Low Voltage Drives

DCS800-S02-0350-05

Alternate Item Number: 3AUA0000013768

UPC: 662348074701

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The ABB DCS800-S02-0350-05 is a high-performance 4-quadrant reversing drive designed for demanding industrial applications. With a robust power rating of 75 HP at 230VAC and 200 HP at 460VAC, this drive delivers exceptional efficiency and control for motor applications requiring precise speed and torque regulation. Featuring a 333A output current at both 240VDC and 500VDC, it ensures reliable operation across a wide range of voltage configurations. The drive's wall-mount design and 3-phase input make it ideal for space-constrained environments, while its UL Type OPEN (IP00) rating ensures compliance with industry safety standards. Weighing 55 lbs and measuring 18.1" x 10.6" x 12.2", the DCS800-S02-0350-05 is engineered for durability and ease of installation. Trust ABB's expertise in low-voltage drives to enhance your industrial automation processes with superior performance and reliability.
  • 4-quadrant reversing drive for precise motor control in both forward and reverse directions
  • High power ratings: 75 HP at 230VAC and 200 HP at 460VAC for demanding industrial applications
  • 333A output current at 240VDC and 500VDC for reliable performance across voltage ranges
  • Wall-mount design with 3-phase input for space-efficient installation in industrial settings
  • UL Type OPEN (IP00) rating ensures compliance with safety standards for industrial environments

Specifications

Package Dimensions (L x W x H)
21 in x 15 in x 15 in
Package Dimensions (L x W x H)
53.34 cm x 38.1 cm x 38.1 cm
Package Weight (Imperial)
62.000 L
Package Weight (Metric)
28.123 kg

Similar Products

DCS800-S02-0350-05+L508

DCS800-S02-0350-05+S199

Voltage Rating: 230 VAC/240 VDC & 460 VAC/500 VDC

Current Rating: 333 A

IP Rating: IP00

DCS800-S02-0350-05+S199+K451+L508

DCS800-S02-0050-05

DCS800-S02-0050-05+J409

Voltage Rating: 230 VAC/240 VDC & 460 VAC/500 VDC

Current Rating: 47 A

IP Rating: IP00

DCS800-S02-0050-05+J409+K462+L501+L509

Voltage Rating: 230 VAC/240 VDC & 460 VAC/500 VDC

Current Rating: 47 A

Size: 14.6 in x 10.6 in x 7.9 in
