ABB - Low Voltage Drives

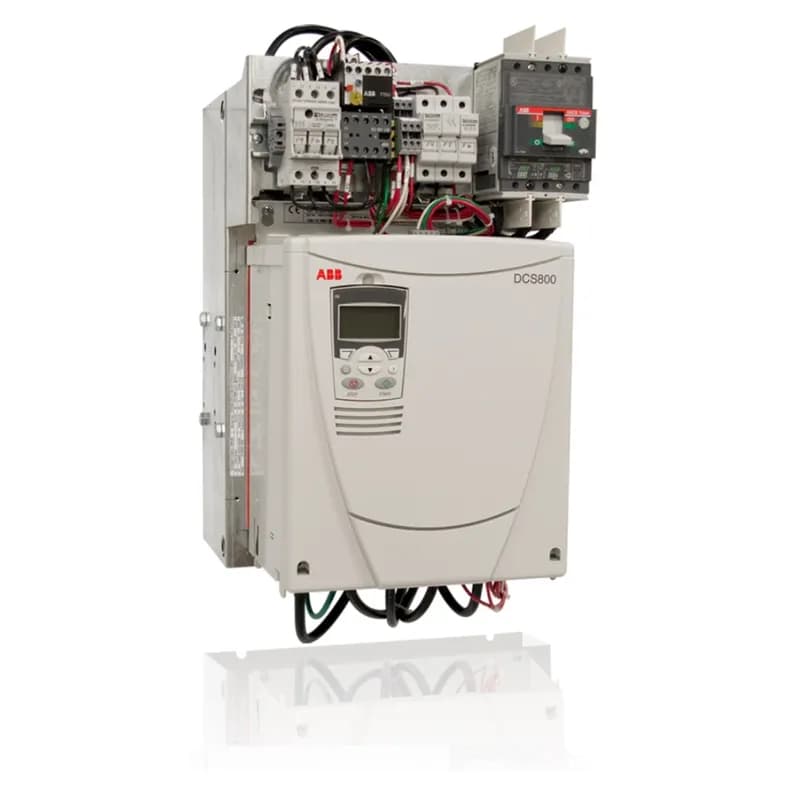

DCS800-EP2-0140-05+E213+F278+M601
Alternate Item Number: 3AUA0000073237
UPC: 662348072370
Documents & Media
Contact for Pricing
Overview
The ABB DCS800-EP2-0140-05+E213+F278+M601 is a high-performance 4-quadrant (reversing) panel drive designed for demanding industrial applications. With a power rating of 60 HP and an output current of 104A, this drive operates at 460VAC/500VDC, making it ideal for heavy-duty machinery requiring precise control and reliability. The cabinet-mount design ensures easy integration into existing systems, while the internal line reactor and circuit breaker enhance safety and performance. Featuring a starter for auxiliary motor cooling fan (1.6 to 2.5A), this drive supports efficient operation in harsh environments. The UL Type OPEN (IP00) rating ensures compliance with industry standards, and the compact dimensions (18.79" x 12.15" x 14.4") and lightweight (88 lbs) design facilitate installation and maintenance. Trust ABB's expertise in low-voltage drives for superior performance and durability in industrial automation.
- 4-quadrant (reversing) operation for precise motor control in both directions
- 60 HP power rating with 104A output current for heavy-duty industrial applications
- Operates at 460VAC/500VDC with 3-phase input for reliable performance
- Cabinet-mount design with internal line reactor and circuit breaker for enhanced safety
- Includes starter for auxiliary motor cooling fan (1.6 to 2.5A) for efficient operation
Specifications
Connection Type | 3-Phase Input |
Current Rating | 104 A |
IP Rating | IP00 |
Mounting Type | Cabinet-mount |
Poles | 3-Phase |
Series | DCS800 |
Size | 18.79 in x 12.15 in x 14.4 in |
Voltage Rating | 460 VAC / 500 VDC |
Package Dimensions (L x W x H) | 32 in x 32 in x 32 in |
Package Dimensions (L x W x H) | 81.28 cm x 81.28 cm x 81.28 cm |
Package Weight (Imperial) | 138.000 L |
Package Weight (Metric) | 62.597 kg |
