ABB - Low Voltage Drives DCS800-DSL-4M-Cable - Interface cable for communication between the DCF external field supply and the DCS800 drive and/or between DCS800 drives. The cable supports communication for 12 pulse operation and drive-to-drive communication with the SDCS-DSL-4 board. This cable is 13 feet (4 m) long and has ferrule-tipped wires on both ends.
ABB - Low Voltage Drives

DCS800-DSL-4M-Cable

Alternate Item Number: 3ADT693554P0004

UPC: 662348069424

Contact for Pricing

Overview

The ABB DCS800-DSL-4M-Cable (SKU: DCS800-DSL-4M-Cable) is a 4-meter (13 ft) interface cable specifically designed for ABB's DCS800 Low Voltage Drives. This cable facilitates essential communication between the DCF external field supply and the DCS800 drive, as well as enabling drive-to-drive communication between multiple DCS800 units. It is engineered to support 12-pulse operation and drive-to-drive communication when utilizing the SDCS-DSL-4 board. Both ends of the cable are equipped with ferrule-tipped wires, ensuring secure and reliable electrical connections for consistent signal integrity in industrial automation and control systems. Manufactured in the US, this cable is built for dependable performance in operational environments. Its specific length of 4 meters provides adequate reach for typical industrial setups, simplifying wiring configurations and installation. This interface cable is a key component for achieving advanced functionality and efficient operation within DCS800 drive systems.
  • 4-meter (13 ft) interface cable length
  • Facilitates communication between DCF and DCS800 drives
  • Enables drive-to-drive communication for DCS800 systems
  • Supports 12-pulse operation with SDCS-DSL-4 board
  • Ferrule-tipped wires on both ends for secure connections

Similar Products

DCS800-DSL-2M-Cable

Size: 6.5 ft (2 m)

Series: DCS800

Connection Type: Ferrule-tipped wires

DCS800-DSL-10M-Cable

DCS800-DSL-20M-Cable

Size: 66 ft (20 m)

Connection Type: Ferrule-tipped wires

Series: DCS800

DCS800-DSL-P5M-Cable

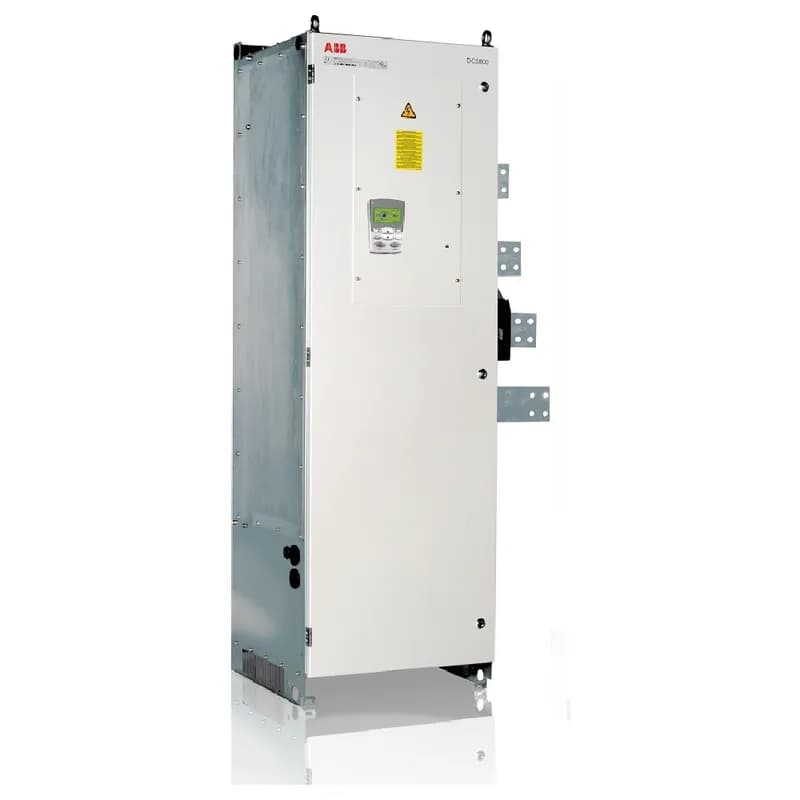

DCS800-S01-4000-05LB

Voltage Rating: 460 VAC / 500 VDC

Current Rating: 3690 A

IP Rating: IP00

DCS800-S01-4000-05RB

Voltage Rating: 460 VAC / 500 VDC

Current Rating: 3690 A

Size: 69 in x 30 in x 22.4 in

You May Also Be Interested In

Interface cable for communication between the DCF external field supply and the DCS800 drive and/or between DCS800 drives. The cable supports communication for 12 pulse operation and drive-to-drive communication with the SDCS-DSL-4 board. This cable is 6.5 feet (2 m) long and has ferrule-tipped wires on both ends.

DCS800-DSL-2M-Cable

Interface cable for communication between the DCF external field supply and the DCS800 drive and/or between DCS800 drives. The cable supports communication for 12 pulse operation and drive-to-drive communication with the SDCS-DSL-4 board. This cable is 33 feet (10 m) long and has ferrule-tipped wires on both ends.

DCS800-DSL-10M-Cable

Interface cable for communication between the DCF external field supply and the DCS800 drive and/or between DCS800 drives. The cable supports communication for 12 pulse operation and drive-to-drive communication with the SDCS-DSL-4 board. This cable is 66 feet (20 m) long and has ferrule-tipped wires on both ends.

DCS800-DSL-20M-Cable

Interface cable for communication between the DCF external field supply and the DCS800 drive and/or between DCS800 drives. The cable supports communication for 12 pulse operation and drive-to-drive communication with the SDCS-DSL-4 board. This cable is 21 inches (0.5 m) long and has ferrule-tipped wires on both ends.

DCS800-DSL-P5M-Cable

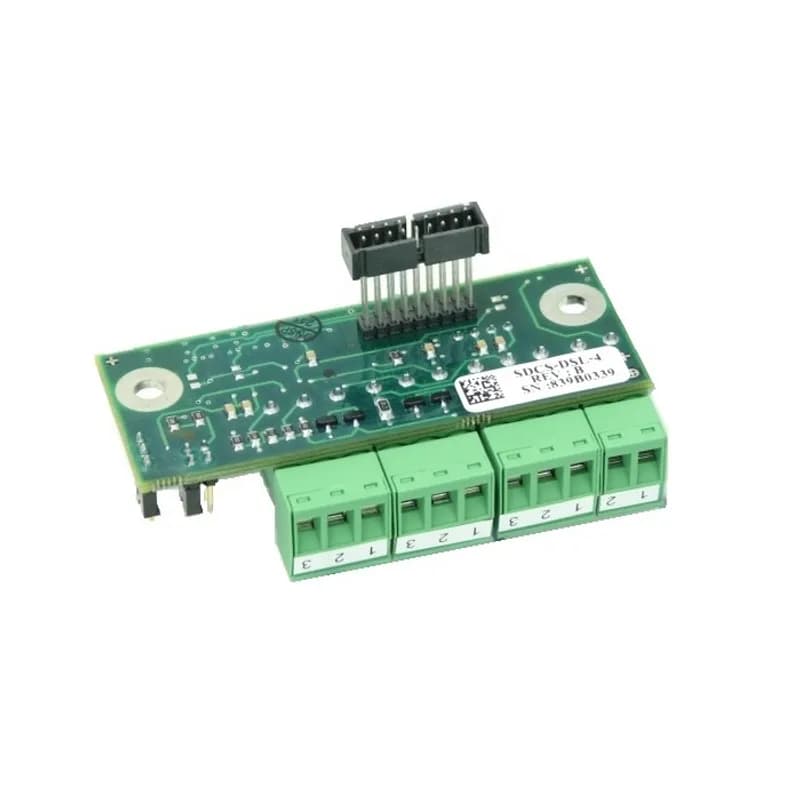

The DSL-4 board provides a drive-to-drive communication dedicated to the DCS800, based on CAN bus. This communication adapter is also used in 12-pulse operation and communication/control of external field supplies. It is standard on D4+ and D5-D7.
