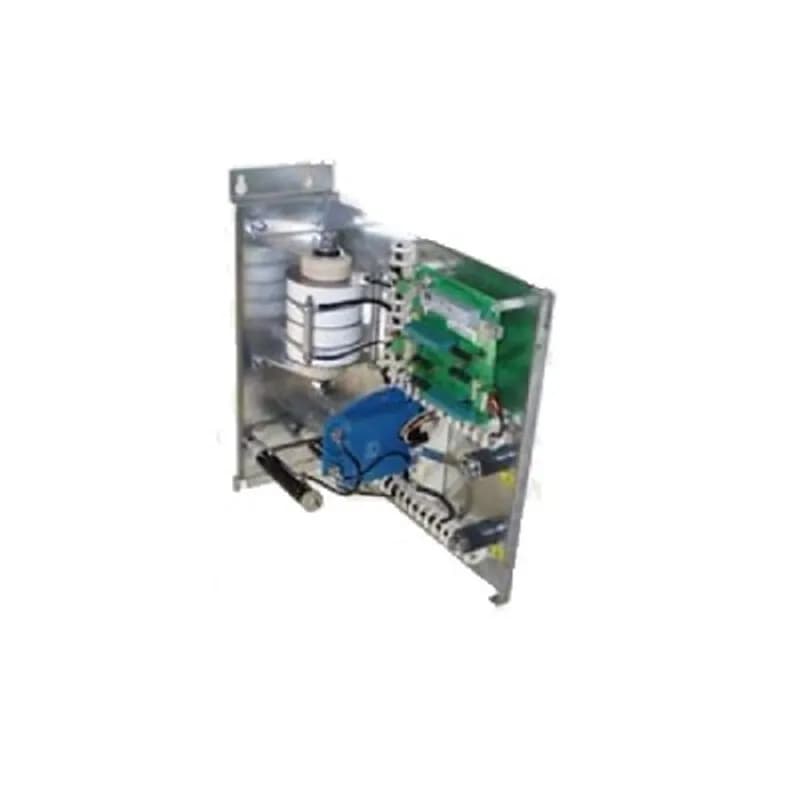

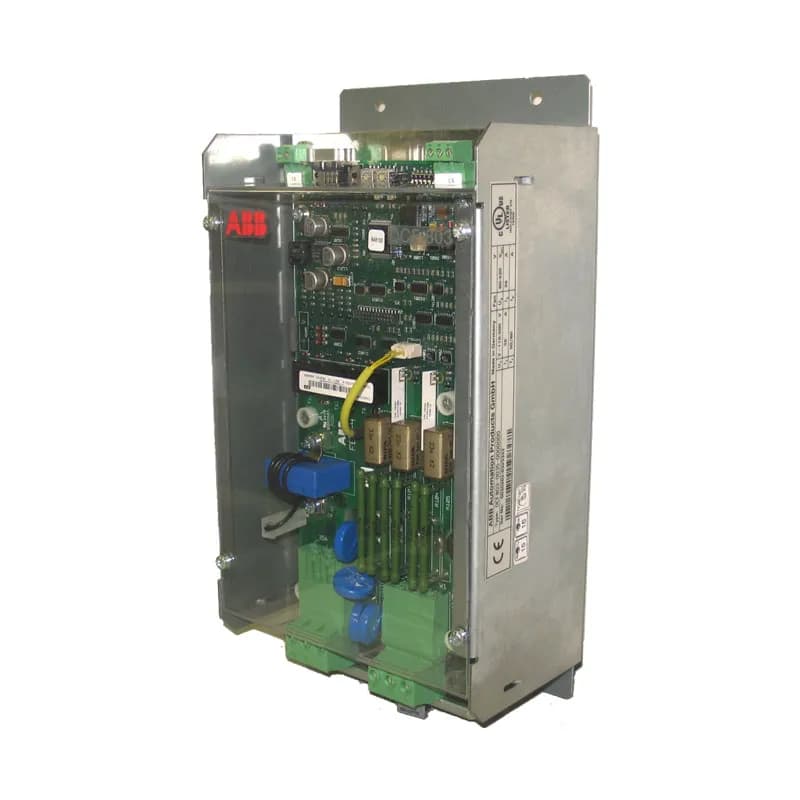

DCF505-0140-51

The ABB DCF505-0140-51 is a dedicated active overvoltage protection unit designed specifically for non-motor applications utilizing the ABB DCS800 drive series in 2Q configurations (DCS800-S01-xxxx-05). This essential component safeguards your drive system against inadmissible high voltages that can arise from inductive loads. The DCF505-0140-51 is engineered for compatibility with DCS800 units ranging from SKU -0020-05 through -0140-05, ensuring a precise fit within your existing setup. Inductive circuits, particularly when switching, can generate significant voltage surges. The operation of inductive loads, such as coils in contactors, stores electromagnetic energy. Upon opening, this energy is released as voltage spikes, potentially reaching several kilovolts. These surges can lead to interference with electronic devices, breakdown of insulators, and damage to sensitive components. The DCF505-0140-51 actively mitigates these risks by limiting these overvoltage events, thereby protecting the DCS800 drive. This protection unit is crucial for maintaining system stability, reducing unscheduled downtime, and extending the operational lifespan of your industrial equipment. Its robust design ensures reliable performance in demanding industrial environments where voltage fluctuations are a concern. By integrating the DCF505-0140-51, you enhance the overall reliability and efficiency of your drive applications. Key Specifications: - SKU: DCF505-0140-51 - Manufacturer: ABB - Low Voltage Drives - Application: Overvoltage protection for DCS800 drives in 2Q configurations with inductive loads. - Compatibility: DCS800 units -0020-05 through -0140-05. - UNSPSC Code: 39122004 - Country of Origin: US
