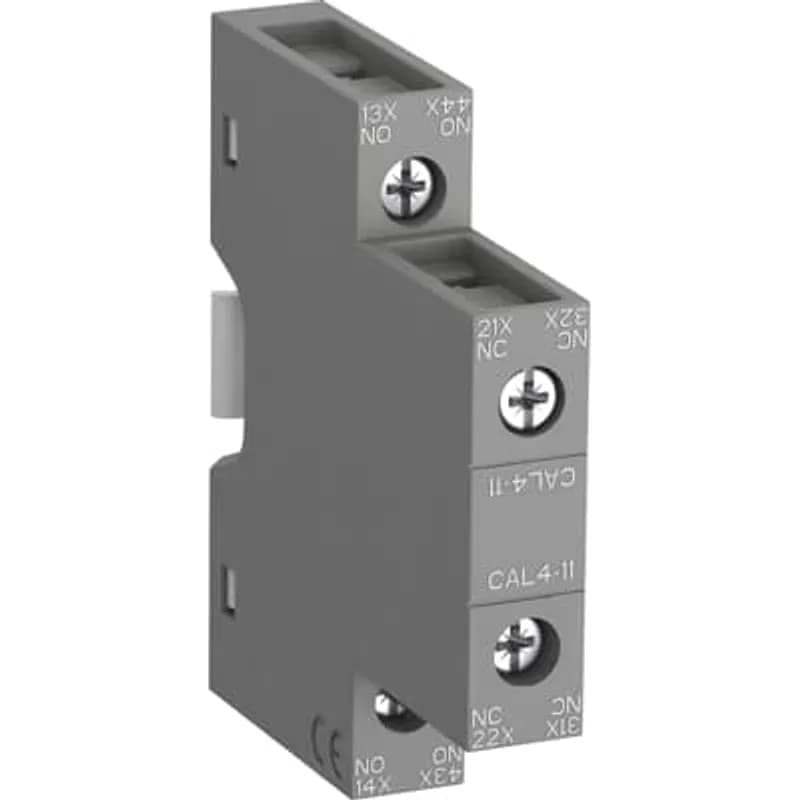

ABB - Electrification CAL4-11-T - For clipping onto the right- and/or left-hand side of the contactors. The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected against accidental direct contact and bear the corresponding function marking.
ABB - Electrification

CAL4-11-T

Contact for Pricing

Overview

Enhance your motor protection and control systems with the ABB CAL4-11-T auxiliary contact block, designed for seamless integration with AF116 to AF2850 contactors. This 2-pole auxiliary contact block provides instantaneous normally open (N.O.) and normally closed (N.C.) contacts, enabling precise control of auxiliary and control circuits in standard industrial environments. Engineered for side-mounting on either the right or left side of compatible contactors, the CAL4-11-T offers versatile installation options to meet your system requirements. The CAL4-11-T features robust screw-type connecting terminals, ensuring secure and reliable electrical connections for critical control applications. Delivered in an open configuration, these terminals are protected against accidental direct contact, enhancing safety during installation and maintenance. Each block is clearly marked with function indicators, simplifying identification and reducing the risk of miswiring in complex control panels. Ideal for expanding the functionality of your motor protection systems, the CAL4-11-T is compatible with a wide range of ABB contactors, including AF116, AF150, AF185, AF265, AF370, AF400, AF580, AF750, AF1000, AF1350, AF1600, AF2050, and AF2850. Whether you need to add auxiliary contacts for signaling, interlocking, or sequential control, this auxiliary contact block delivers the performance and reliability required in demanding industrial applications. The CAL4-11-T is part of ABB's comprehensive range of motor protection and control accessories, designed to integrate seamlessly with ABB's Electrification portfolio. Trust ABB's legacy of innovation and quality to provide solutions that enhance the efficiency and safety of your electrical systems. For technical specifications, fitting details, and compatibility information, refer to ABB's official documentation or consult with a certified distributor like Gross Automation. Upgrade your control circuits with the ABB CAL4-11-T auxiliary contact block—where precision meets reliability in industrial motor protection.
  • 2-pole auxiliary contact block with instantaneous N.O. + N.C. contacts
  • Side-mountable on right and/or left side of AF116 to AF2850 contactors
  • Screw-type connecting terminals with protection against accidental contact
  • Clear function marking for easy identification and reduced miswiring risk
  • Compatible with ABB's Electrification motor protection and control systems

Specifications

Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
Rated Frequency
Auxiliary Circuit 50 Hz / Auxiliary Circuit 60 Hz
Size
82x110x108mm
Special Features
The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard industrial environments.Types of auxiliary contact blocks for front mounting:• CA4 1 or 4-pole block, with instantaneous N.O., N.C. contacts• CC4 1-pole block, with N.O. leading contact or N.C. lagging contact• CAT4 2-pole block, with instantaneous N.O. + N.C. contacts and A1 / A2 coil terminal connection on front face.Select the 4-pole auxiliary contact blocks CA4-..E, CA4-..M, CA4-..U or CA4-..N type, according to the contactor or contactor relay type for compliance with the standard requirements (see "Terminal marking and positioning").Types of auxiliary contact blocks for side mounting:• CAL4 2-pole block, with instantaneous N.O. + N.C. contacts.For clipping onto the right- and/or left-hand side of the contactors. The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected against accidental direct contact and bear the corresponding function marking.
Standard
RoHs, CSA, cUL, CE, GOST
Type
Contactors
Package Dimensions (L x W x H)
6.299 IN x 2.992 IN x 2.677 IN
Package Dimensions (L x W x H)
15.9995 cm x 7.5997 cm x 6.7996 cm
Package Weight (Imperial)
0.882 L
Package Weight (Metric)
0.400 kg

Similar Products

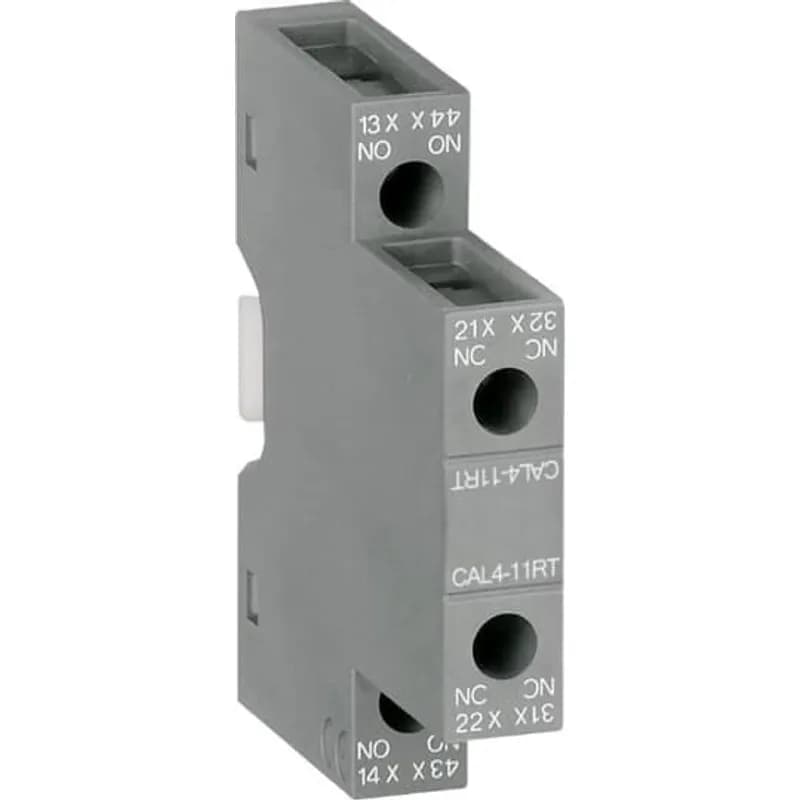

CAL4-11RT

CAL4-11

Connection Type: Screw Terminal

Mounting Type: Clipping onto contactors

Poles: 2 (N.O. + N.C.)

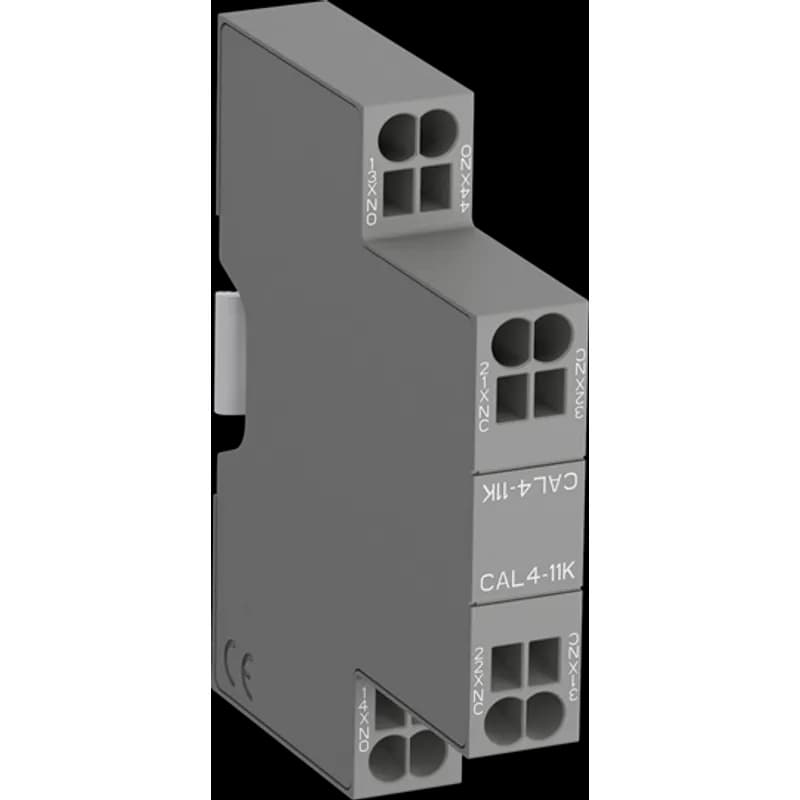

CAL4-11K

Poles: 2

Connection Type: Push-in Spring terminals

Mounting Type: Side Mounting

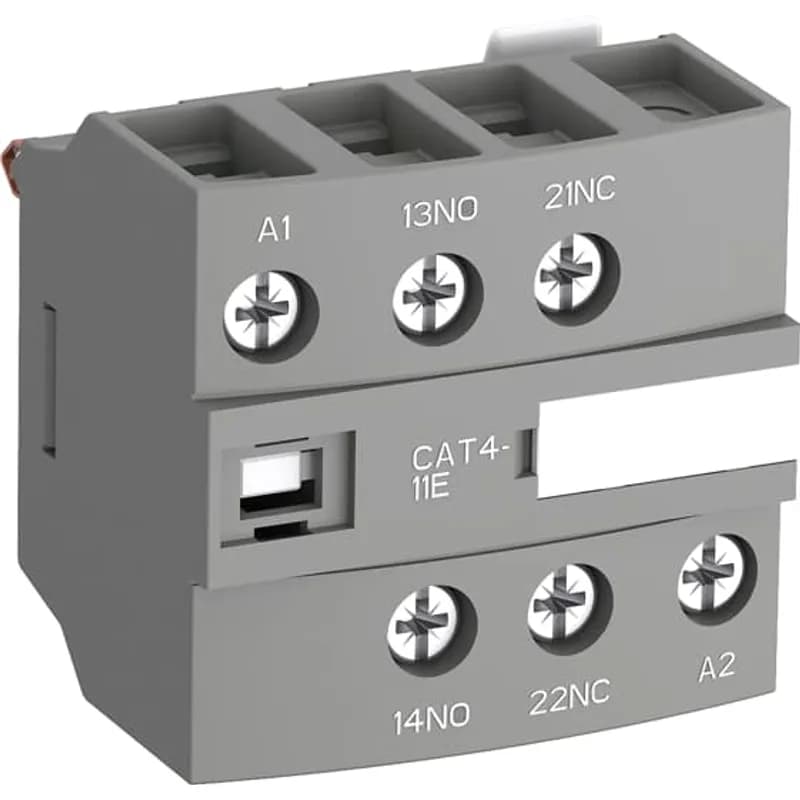

CAT4-11E

CAT4-11ERT

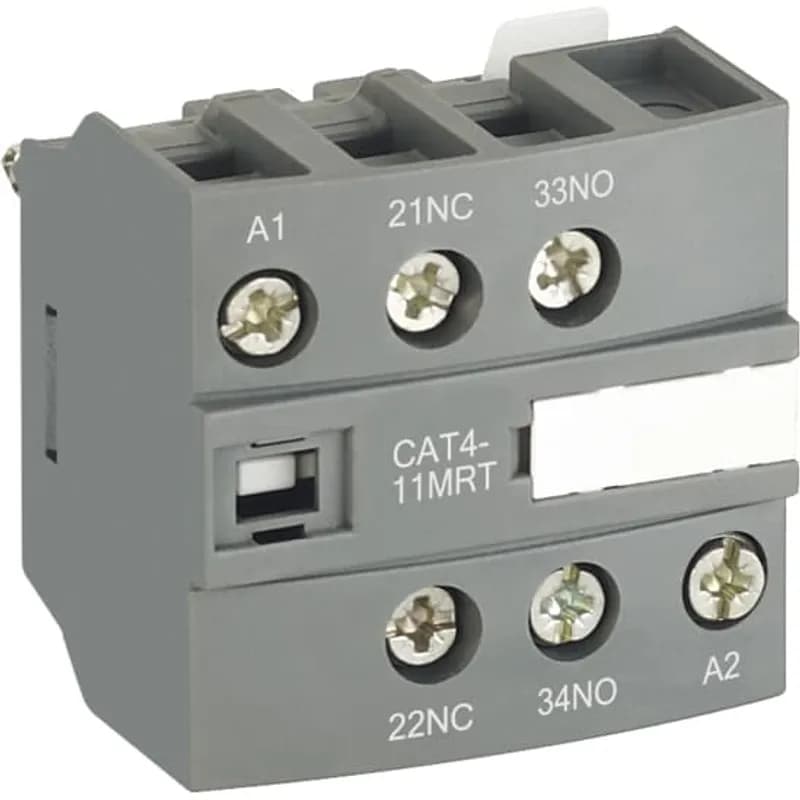

CAT4-11M
