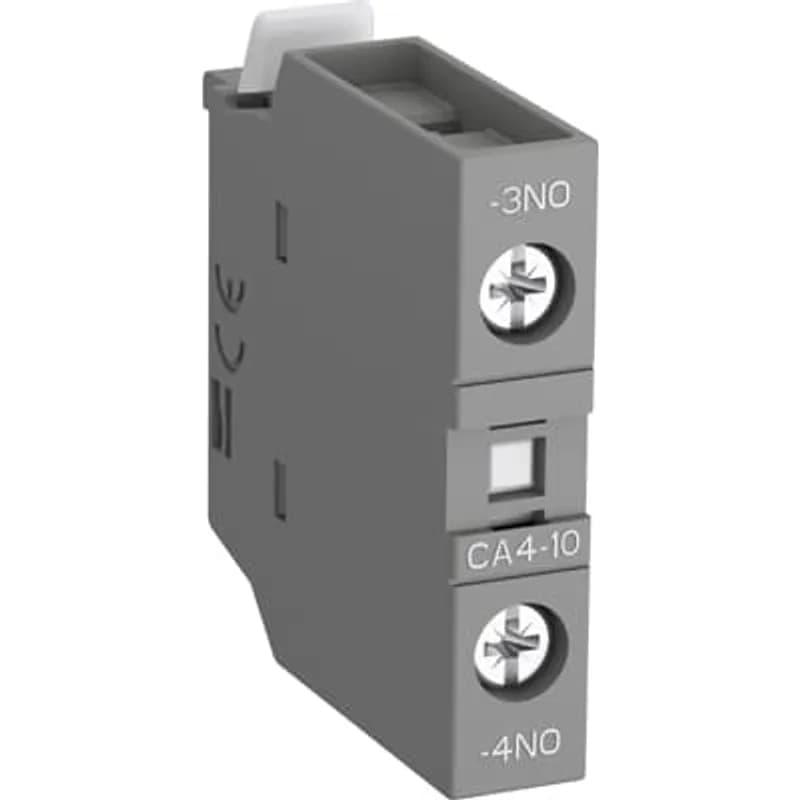

ABB - Electrification CA4-10-T - For clipping onto the right- and/or left-hand side of the contactors. The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected against accidental direct contact and bear the corresponding function marking.
ABB - Electrification

CA4-10-T

Contact for Pricing

Overview

Enhance your control system with the ABB CA4-10-T Auxiliary Contact Block, designed for seamless integration with ABB contactors. This versatile accessory can be clipped onto either the right-hand or left-hand side of compatible contactor units, offering flexible configuration options for diverse industrial applications. The CA4-10-T features robust screw-type connecting terminals, delivered in an open position for straightforward wiring and installation. Engineered with safety as a priority, these terminals are protected against accidental direct contact, ensuring operator security during maintenance and operation. Each auxiliary contact block is clearly marked with its corresponding function, simplifying identification and troubleshooting within complex electrical panels. This component is crucial for expanding the signaling and interlocking capabilities of your contactor assemblies, enabling advanced control logic and status monitoring. Ideal for use in motor control centers, automation systems, and power distribution panels where reliable auxiliary functions are paramount. Trust ABB Electrification for high-quality components that deliver performance and durability in demanding industrial environments. The CA4-10-T is a testament to ABB's commitment to providing essential building blocks for robust electrical infrastructure.
  • Designed for clipping onto right- and/or left-hand sides of ABB contactors
  • Equipped with screw-type connecting terminals for secure wiring
  • Terminals delivered open and protected against accidental direct contact
  • Clearly marked with corresponding function for easy identification
  • Enhances control and signaling capabilities of contactor assemblies

Specifications

Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
Connection Type
Screw Terminal
Mounting Type
Clipped onto contactor side
Rated Frequency
Auxiliary Circuit 50 Hz / Auxiliary Circuit 60 Hz
Size
82x110x108mm
Special Features
The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard industrial environments.Types of auxiliary contact blocks for front mounting:• CA4 1 or 4-pole block, with instantaneous N.O., N.C. contacts• CC4 1-pole block, with N.O. leading contact or N.C. lagging contact• CAT4 2-pole block, with instantaneous N.O. + N.C. contacts and A1 / A2 coil terminal connection on front face.Select the 4-pole auxiliary contact blocks CA4-..E, CA4-..M, CA4-..U or CA4-..N type, according to the contactor or contactor relay type for compliance with the standard requirements (see "Terminal marking and positioning").Types of auxiliary contact blocks for side mounting:• CAL4 2-pole block, with instantaneous N.O. + N.C. contacts.For clipping onto the right- and/or left-hand side of the contactors. The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected against accidental direct contact and bear the corresponding function marking.
Standard
RoHs, CSA, cUL, CE, GOST
Type
Contactors
Package Dimensions (L x W x H)
4.055 IN x 1.811 IN x 1.929 IN
Package Dimensions (L x W x H)
10.2997 cm x 4.5999 cm x 4.8997 cm
Package Weight (Imperial)
0.309 L
Package Weight (Metric)
0.140 kg

Similar Products

CA4-10

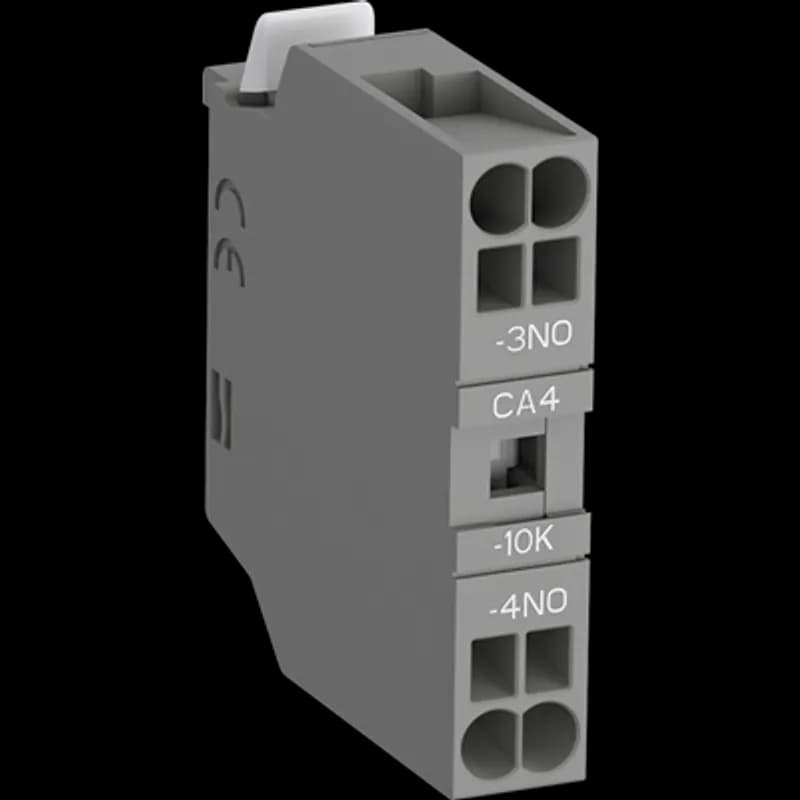

CA4-10K

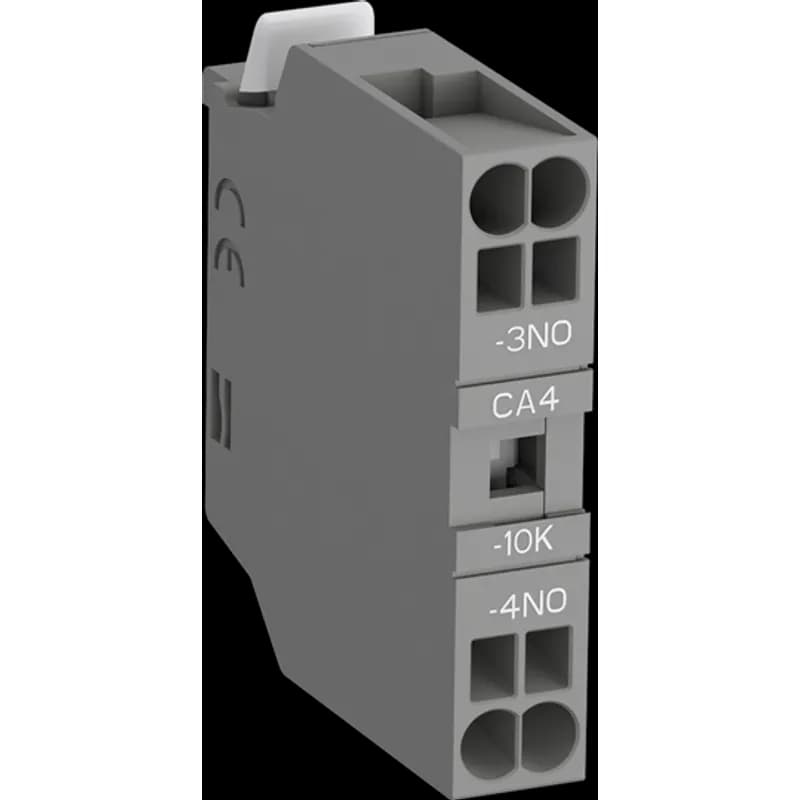

CA4-10K-T

Rated Frequency: Auxiliary Circuit 50 Hz/Auxiliary Circuit 60 Hz

Poles: 1 or 4-pole

Connection Type: Push-in Spring terminals

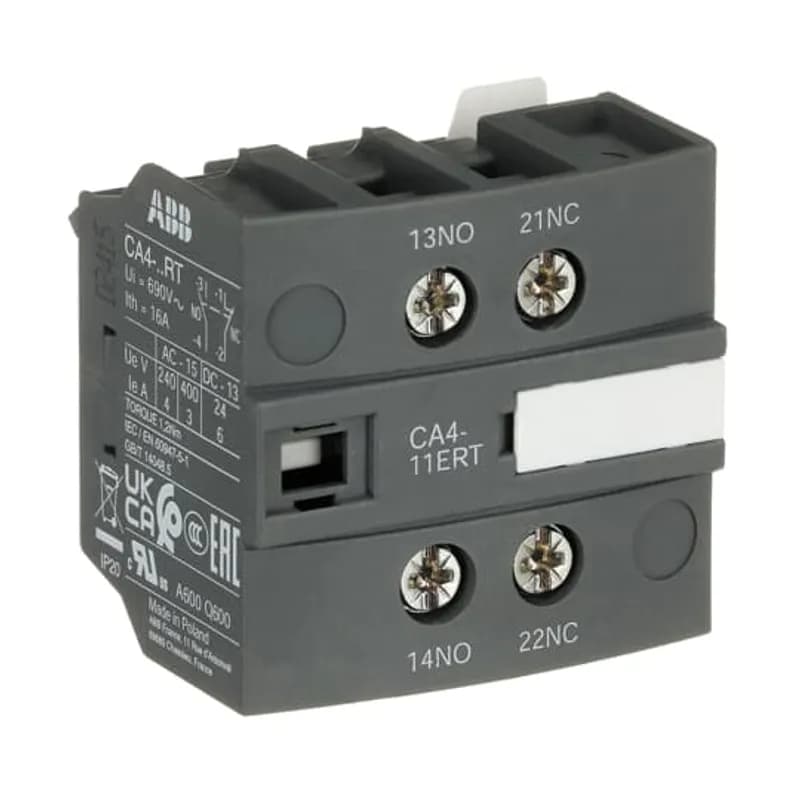

CA4-11ERT

Connection Type: Screw type connecting terminals

Mounting Type: Clips onto right- and/or left-hand side of contactors

Series: CA4

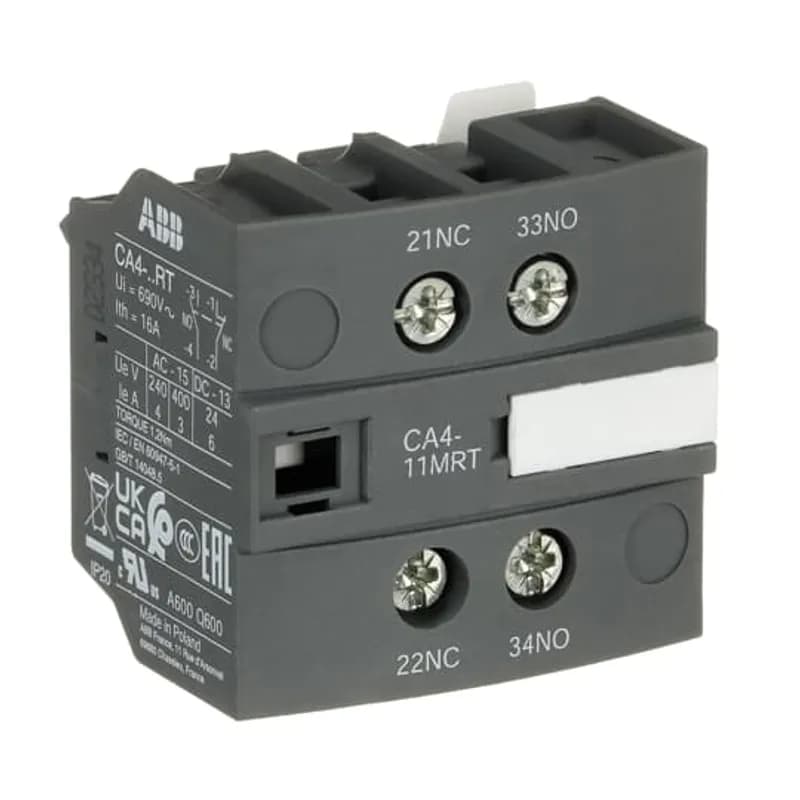

CA4-11MRT

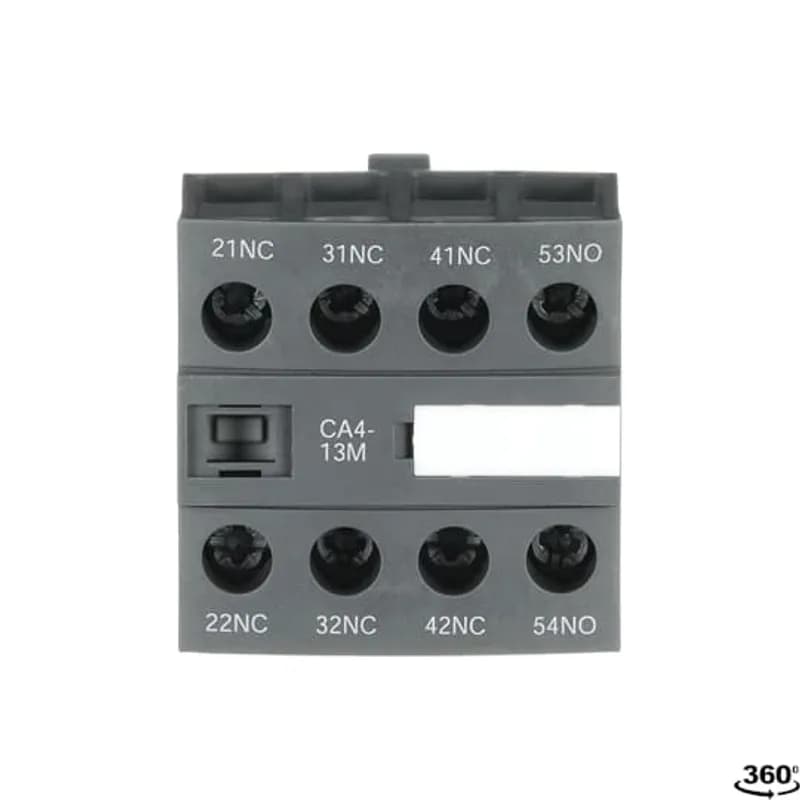

CA4-13M
