ABB - Low Voltage Drives AIMA-01-KIT - The AIMA-01 I/O Module Adapter is an extension unit for the mounting of I/O extension modules, such as RDIO-01, RAIO-01 and RTAC-01, outside the drive unit. The AIMA-01 is connected to the drive via a DDCS-protocol fibre optic link. Up to three I/O extension modules can be mounted on one AIMA-01 adapter. Several AIMA-01 adapters can be connected in a ring topology using fibre optic cable.
ABB - Low Voltage Drives

AIMA-01-KIT

Alternate Item Number: 68286778

UPC: 662348069271

Contact for Pricing

Overview

The ABB AIMA-01 I/O Module Adapter (SKU: AIMA-01-KIT) is an essential extension unit designed to enhance the input/output capabilities of ABB Low Voltage Drives. This adapter facilitates the external mounting of I/O extension modules, including the RDIO-01, RAIO-01, and RTAC-01, offering greater flexibility in drive system configuration. Communication between the AIMA-01 adapter and the drive is established via a high-speed, reliable DDCS-protocol fiber optic link, ensuring robust data transfer. Each AIMA-01 adapter supports the mounting of up to three I/O extension modules, allowing for significant expansion of analog and digital I/O points. This modular approach simplifies system design and allows for scalable solutions tailored to specific application needs. For distributed control architectures, multiple AIMA-01 adapters can be interconnected in a ring topology using fiber optic cables, providing enhanced system redundancy and flexibility. The AIMA-01 adapter is compatible with various ABB I/O modules that connect via the DDCS protocol. For instance, the AI01 analog input module processes up to 16 analog field inputs, individually programmable for 4-20 mA, 1-5 VDC, 0-5 VDC, 0-10 VDC, or -10 to +10 VDC. The AI02 HART analog input module also handles up to 16 high-level analog field inputs for Symphony Plus controllers, with individual channel configuration for current or voltage inputs. The AD11 Analog Drive module offers a mixed signal capability, providing 4x Analog Input, 4x Analog Output, 4x Digital Input, and 4x Digital Output signals. These analog channels support HART, and digital inputs support SOE (Sequence of Events). Digital outputs are transistor type, 24-48 VDC, capable of 250 mA. Manufactured in the US, the AIMA-01-KIT is ideal for industrial automation applications requiring expanded and distributed I/O control for ABB Low Voltage Drives. Its fiber optic connectivity ensures immunity to electromagnetic interference, making it suitable for challenging industrial environments. The AIMA-01 adapter is a key component for building flexible, scalable, and reliable automation systems.
  • Extends I/O capabilities for ABB Low Voltage Drives
  • Connects via DDCS-protocol fiber optic link for reliable communication
  • Supports mounting of up to three I/O extension modules per adapter
  • Enables ring topology for distributed control systems
  • Compatible with modules like RDIO-01, RAIO-01, RTAC-01, AI01, AI02, and AD11

You May Also Be Interested In

The analog I/O extension module offers two unipolar current (0(4) to 20 mA) or bipolar voltage (+/-0(2) to 0 V or +/-0 to 2 V) inputs and two unipolar current (0(4)-20 mA) outputs. Analog unipolar inputs are 12 bit resolution. Bipolar inputs are 11 bit resolution. Analog outputs are 12 bit resolution. The analog inputs and outputs are galvanically isolated as a group, from each other and the power supply.

RAIO-01-KIT

The FDIO-01 digital I/O extension module expands the digital inputs and outputs of the drive control unit. It has three digital inputs (up to 250 VDC or 230 VAC) and and two form C (NO/NC) relay outputs (2 Amps at 240 VAC).

FDIO-01-KIT

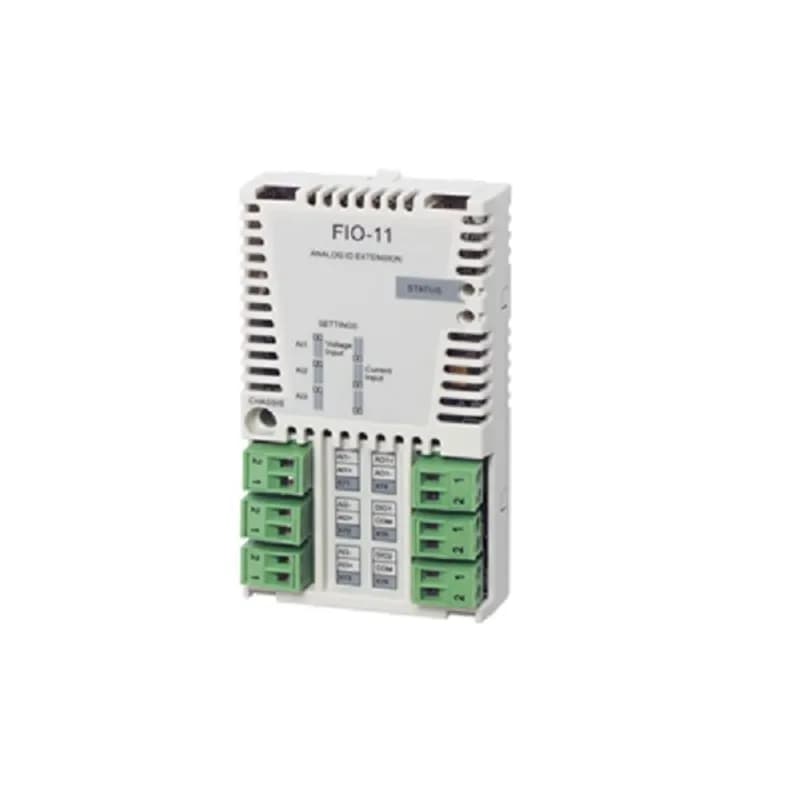

Analog I/O extension module FIO-11 has three bi-polar current (-20 to +20 mA) or bi-polar voltage (-10 to +10 V) inputs and one uni-polar current (0(4) to 20 mA) output. It also has two 24 VDC digital input/outputs (configurable either as a 50 mA source or 50 mA sink). Analog inputs are 16 bit resolution, outputs are 12 bit. Analog and digital I/O are galvanically isolated as a group, from each other and from the power supply.

FIO-11-KIT

Digital I/O extension module FIO-01 has four 24 VDC digital input/outputs (configurable either as 50 mA source or 500 mA sink) and two form C (NO/NC) relay outputs (2 Amps at 240 VAC). The I/O is galvanically isolated as a group. Relay outputs have reinforced isolation.

FIO-01-KIT

The Digital I/O Extension module offers three digital inputs (24…250 VDC or 110…230 VAC) and two relay outputs (1250 VA/250 VAC or 5 A/24 VDC). The isolation voltage between the digital inputs, digital outputs and power supply is 2.5 kV (1.5 kV between DI2 and DI3). This option uses 30 mA of the available 250 mA power supply.

RDIO-01-KIT
