ABB - Low Voltage Drives
ACS850-04-094A-5+J400
Alternate Item Number: 3AUA0000055992
UPC: 662348060254
Documents & Media
Contact for Pricing
Overview

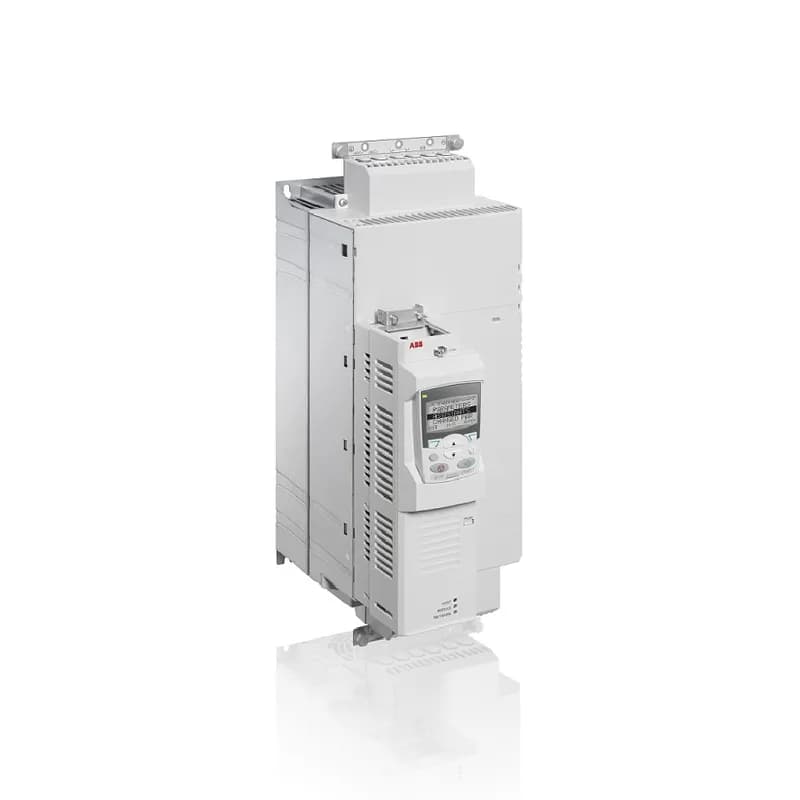

The ABB ACS850-04-094A-5+J400 is a robust 60 HP machinery drive from ABB's Low Voltage Drives division, engineered for precise industrial automation. This drive delivers a substantial 90A output current at 480 VAC, with a flexible voltage range of 380-500V, ensuring compatibility with diverse power systems. Designed for cabinet mounting in a side-by-side configuration, its UL TYPE OPEN (IP20) enclosure offers protection suitable for controlled industrial environments. The unit features a 3-phase input and 3-phase output, facilitating straightforward integration into existing machinery. Its compact frame size D measures 22.3 inches in height, 8.7 inches in width, and 11.8 inches in depth, with a manageable weight of 51 lbs, simplifying installation and space utilization. The ACS850 series is recognized for its reliability, energy efficiency, and advanced control capabilities, making the ACS850-04-094A-5+J400 an excellent choice for applications requiring dependable motor control and process optimization. This drive is ideal for various machinery applications where consistent performance and operational efficiency are paramount. The included control unit cover with a drive mount control panel enhances user interaction and operational oversight. Manufactured in Denmark (DK), this drive adheres to high-quality standards expected from ABB.
- 60 HP / 45 kW motor power rating
- 90 A output current
- 480 VAC input voltage (380-500V range)
- Cabinet-mounted, UL TYPE OPEN (IP20) enclosure
- 3-phase input and output
Specifications
Connection Type | 3-Phase Input, 3-Phase Output |
Connection Type | 3-phase |
Current Rating | 90 A |
IP Rating | IP20 |
Mounting Type | Cabinet-mounted (Side-by-Side) |
Poles | 3 |
Poles | 3-Phase |
Series | ACS850 |
Size | 22.3 in x 8.7 in x 11.8 in |
Size | 22.3x8.7x11.8 in |
Voltage Rating | 480 VAC |
Package Dimensions (L x W x H) | 28 IN x 13 IN x 13 IN |
Package Dimensions (L x W x H) | 71.12 cm x 33.02 cm x 33.02 cm |
FENA-21
The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.
