ABB - Low Voltage Drives
ACS800-37-0610-5+B055+C129+H352
Alternate Item Number: 3AUA0000046604
UPC: 662348055298
Documents & Media
Contact for Pricing
Overview

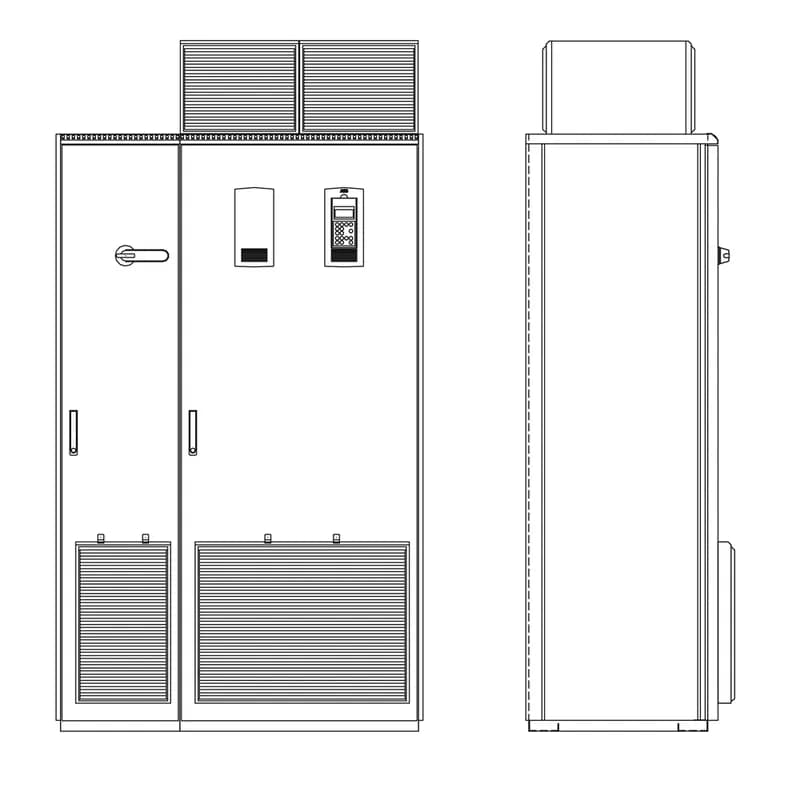

The ABB ACS800-37-0610-5+B055+C129+H352 is a robust, cabinet-style variable frequency drive engineered for industrial applications demanding ultra-low harmonic distortion. This powerful unit boasts a 550 HP motor rating and delivers a substantial output current of 672 A at 480 VAC, with a flexible input voltage range of 380-500V. Its NEMA 12 / UL Type 12 (IP54) enclosure provides reliable protection against dust and water ingress, making it suitable for demanding floor-mounted installations. The drive features a 0610 KVA rating and is built on the R8i frame. Physical dimensions are 91.1 inches in height, 48.4 inches in width, and 25.4 inches in depth, with a product weight of 2090 lbs. Control is user-friendly via an optional local or remote mounted LCD display and keypad. This 3-phase input, 3-phase output drive is manufactured by ABB Low Voltage Drives and is an ideal choice for heavy-duty industrial sectors where harmonic mitigation is critical, such as manufacturing, processing plants, and other applications requiring precise motor control and grid compliance. The UNSPSC code for this product is 39122001. This drive is designed for optimal performance and efficiency in demanding industrial environments.
- 550 HP Motor Rating
- 672 A Output Current
- 480 VAC Input Voltage (380-500V Range)
- NEMA 12 / UL Type 12 (IP54) Enclosure
- Cabinet-style, Floor-mounted Design
Specifications
Current Rating | 672A |
IP Rating | IP54 |
Mounting Type | Floor-mounted |
Nema Rating | NEMA 12 |
Nema Rating | NEMA 12 / UL Type 12 |
Poles | 3-Phase |
Series | ACS800 |
Size | 91.1 in x 48.4 in x 25.4 in |
Size | 91.1 x 48.4 x 25.4 in |
Voltage Rating | 480 VAC |
FENA-21
The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.
