ABB - Low Voltage Drives
ACS800-37-0400-5+C129
Alternate Item Number: 3AUA0000013164
UPC: 662348054628
Documents & Media
Contact for Pricing
Overview

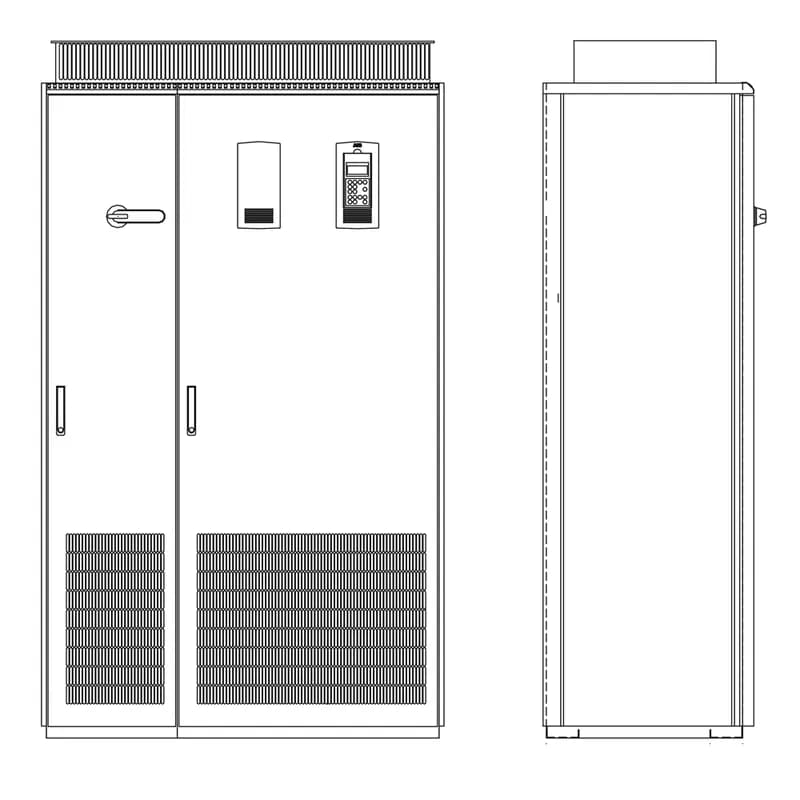

The ABB ACS800-37-0400-5+C129 is a 350 HP (400 KVA) cabinet drive designed for industrial applications requiring ultra-low harmonic distortion. This unit operates on a 3-phase input and provides a 3-phase output with a voltage range of 380-500 VAC, specifically rated for 480 VAC. It delivers an output current of 437 A. The drive features a NEMA 1 / UL Type 1 (IP21) enclosure, suitable for floor-mounted installations in environments where protection against falling dirt is required. The physical dimensions of the drive are 91.1 inches in height, 48.4 inches in width, and 25.4 inches in depth, with a substantial product weight of 2090 lbs. It includes a local or remote-mounted LCD display and keypad for straightforward monitoring and control. Manufactured by ABB Low Voltage Drives, this drive is part of the ACS800 product family and is built with frame R8i. Its design prioritizes efficiency and reliability in demanding industrial settings.
- 350 HP / 400 KVA Power Rating
- Ultra Low Harmonic Distortion
- 480 VAC, 380-500V Voltage Range
- 437 A Output Current
- NEMA 1 / UL Type 1 (IP21) Enclosure
Similar Products
ACS800-37-0400-5+C129+E205
Voltage Rating: 480 VAC
Current Rating: 437 A
Size: 91.1 in x 48.4 in x 25.4 in
