ABB - Low Voltage Drives
ACS800-17-0120-5+B055+C129
Alternate Item Number: 3AUA0000051414
UPC: 662348051153
Documents & Media
Contact for Pricing
Overview

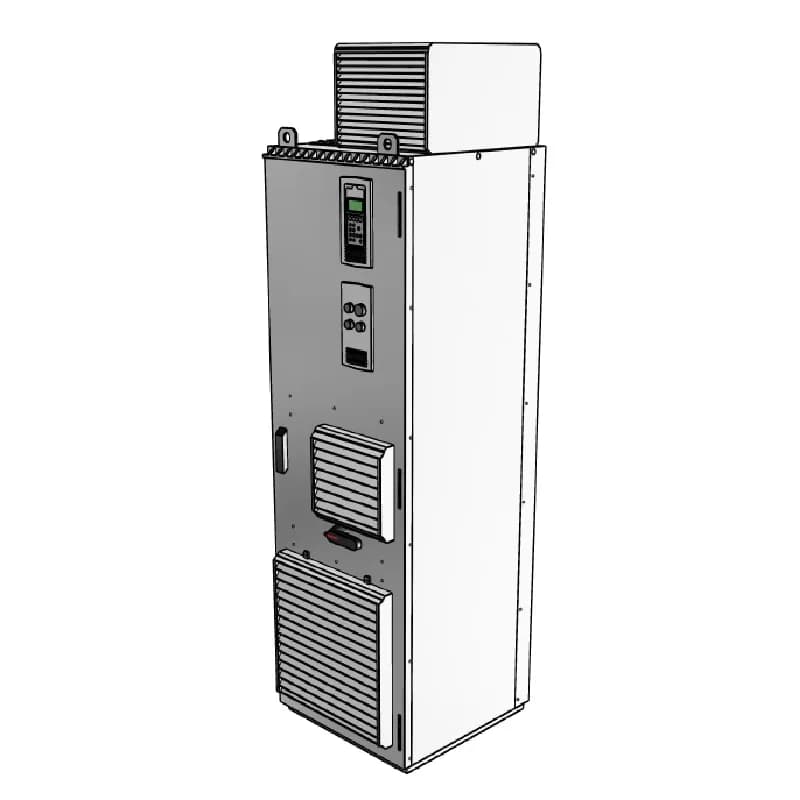

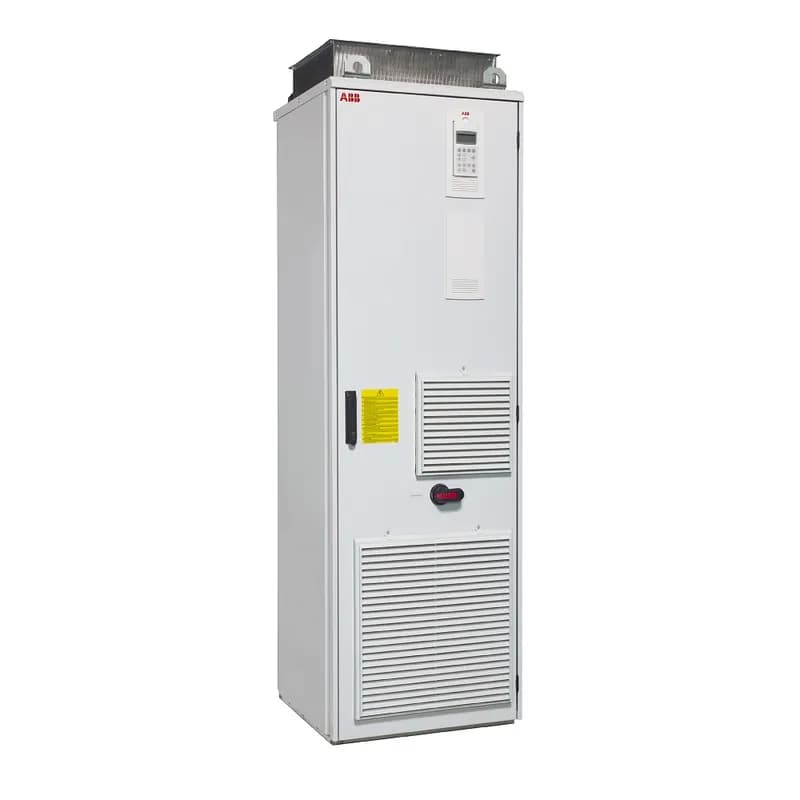

The ABB ACS800-17-0120-5+B055+C129 is a floor-mounted, regenerative cabinet drive from ABB's Low Voltage Drives product family. This unit is rated for 125 HP and delivers an output current of 156 A at 480 VAC, with a voltage range of 380-500V. It features a NEMA 12 / UL Type 12 enclosure, providing IP54 protection against dust and moisture, making it suitable for industrial environments. The drive supports 3-phase input and 3-phase output. Physical dimensions are 91.1 inches in height, 16.9 inches in width, and 25.4 inches in depth, with a product weight of 662 lbs. Operation and monitoring are facilitated by a local or remote mounted LCD display and keypad. The regenerative capability allows for energy recovery, returning excess power to the grid and improving overall system efficiency. This drive is ideal for applications in manufacturing, automation, and process industries requiring precise motor control and energy savings.
- 125 HP Motor Power Rating
- 156 A Output Current
- 480 VAC Operating Voltage (380-500V Range)
- NEMA 12 / UL Type 12 (IP54) Enclosure
- Floor-mounted design with LCD display and keypad
Similar Products

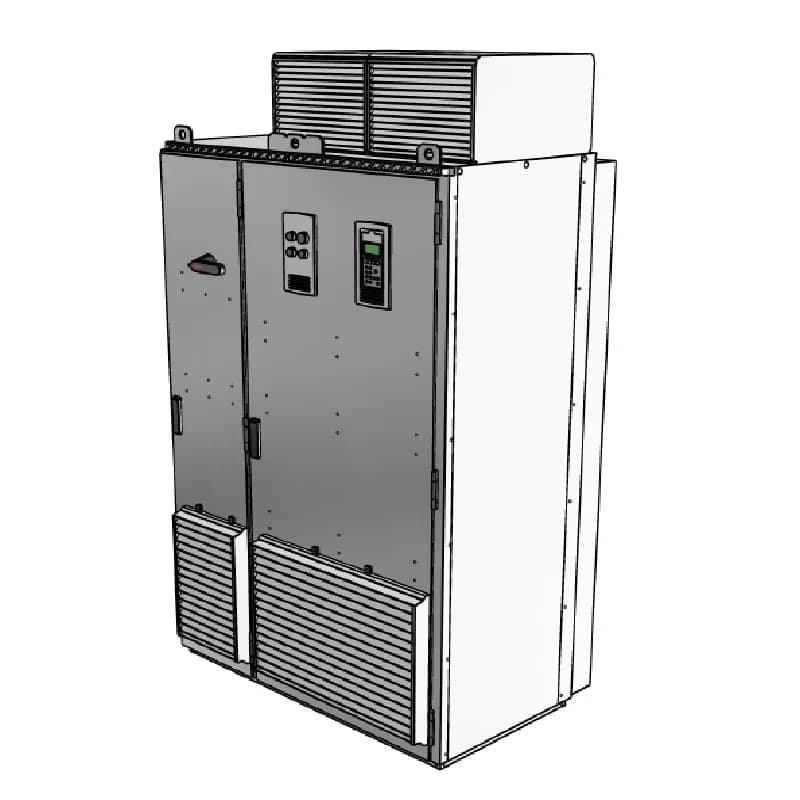

ACS800-17-0320-5+B055+C129+H352
