ABB - Low Voltage Drives
ACS550-U1-03A3-4+K454
Alternate Item Number: 3AUA0000009184
UPC: 662348047576
Documents & Media
Contact for Pricing
Overview

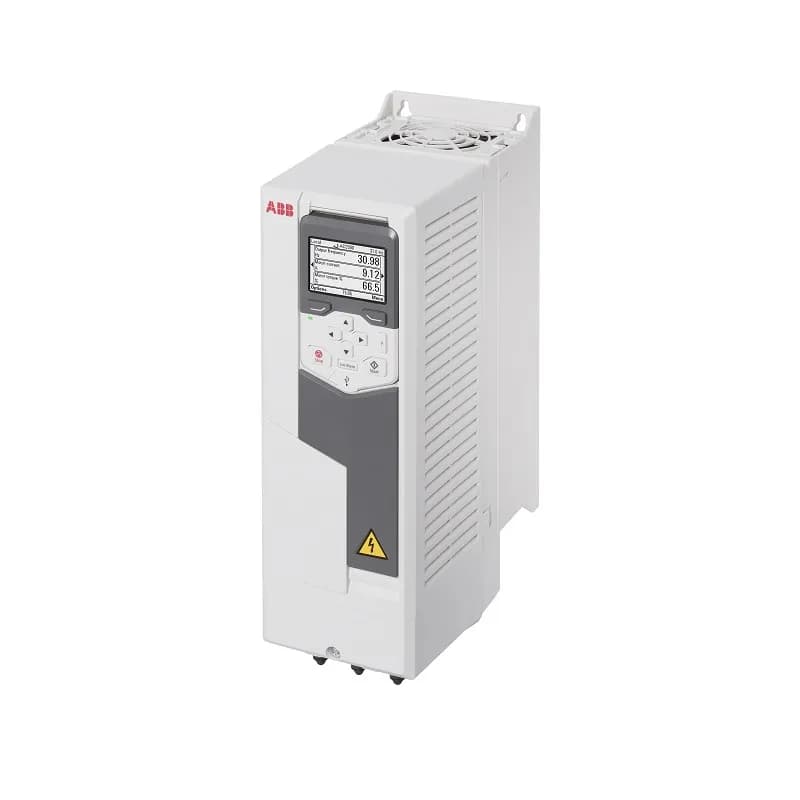

The ABB ACS550-U1-03A3-4+K454 is a compact AC drive from ABB Low Voltage Drives, designed for precise motor control in industrial settings. This unit operates with an input voltage range of 380-480V and handles a motor with a 1.5HP rating, drawing a maximum current of 3.3A. Its enclosure is rated Type 1 / IP21, providing protection against dust and light water splashes, suitable for general industrial environments. The drive features an advanced control system with a 1.1 overload capacity, ensuring reliable operation under demanding conditions. Its physical dimensions are 14.5 x 4.9 x 8.3 inches, and it is designed for wall mounting, optimizing space utilization. The inclusion of the PROFIBUS DP communication protocol facilitates straightforward integration into existing automation networks. This drive is well-suited for applications such as pumps, fans, and conveyors where variable speed control is required to enhance energy efficiency and process optimization. Manufactured in Denmark (DK).
- ABB ACS550 AC Drive, SKU: ACS550-U1-03A3-4+K454
- Input Voltage: 380-480V AC
- Motor Rating: 1.5HP
- Output Current: 3.3A
- Enclosure: Type 1 / IP21, Wall Mount
- Communication: PROFIBUS DP
- Overload Capacity: 1.1
Specifications
Control Panel | Advanced |
Current Rating | 3.3 A |
Frame Size | R1 |
Input Phase | 3-Phase |
IP Rating | IP21 |
Mounting Type | Wall Mount |
NEMA Rating | Type 1 |
Options | PROFIBUS DP |
Output Current | 3.3 |
Output Phase | 3-Phase |
Size | 14.5 x 4.9 x 8.3 in |
UL Type | 1 |
Voltage | 480 |
Voltage Range | 380-480 |
Voltage Rating | 380-480 VAC |
Package Dimensions (L x W x H) | 8.3 in x 4.9 in x 14.5 in |
Package Dimensions (L x W x H) | 21.082 cm x 12.446 cm x 36.83 cm |
Package Weight (Imperial) | 14.300 L |
Package Weight (Metric) | 6.487 kg |
FENA-21
The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.
