ABB - Low Voltage Drives
ACS550-PC-316A-4
Alternate Item Number: 3AUA0000010324
UPC: 662348043158
Documents & Media
Contact for Pricing
Overview

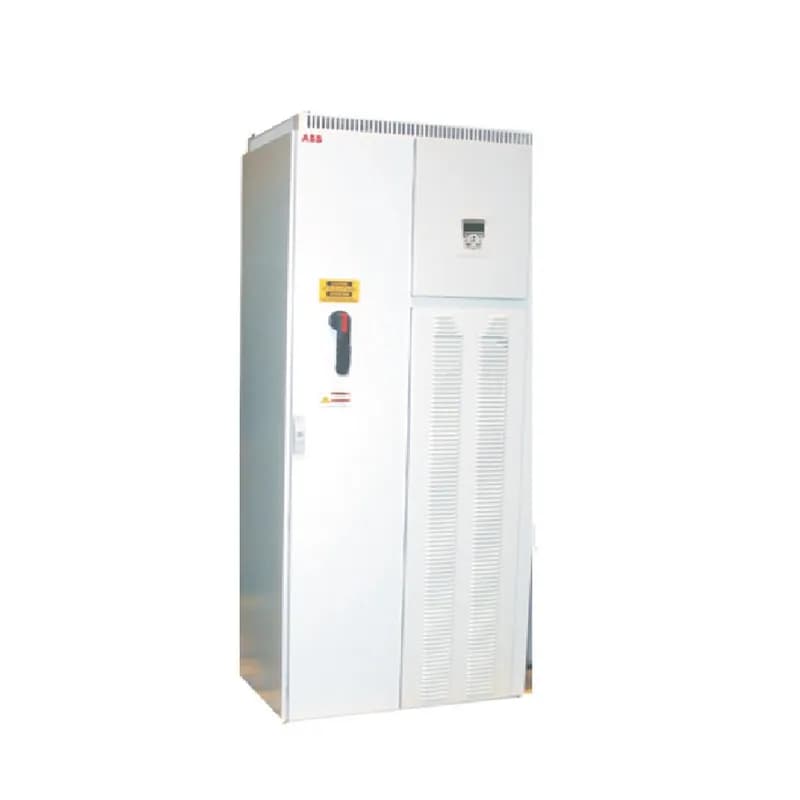

The ABB ACS550-PC-316A-4 is a general-purpose packaged drive designed for industrial motor control applications. This 250 HP drive delivers 316A output current at 480VAC (380-480V range) with a 3-phase input/output configuration. The NEMA 1 / UL Type 1 (IP21) enclosure provides protection against dust and debris, making it suitable for harsh industrial environments. The free-standing design measures 83.7 x 31.7 x 25.9 inches and weighs 793 lbs, with a robust R8 frame for heavy-duty applications. The advanced control panel enables precise motor control, while the integrated circuit breaker disconnect enhances safety during maintenance. This drive is part of the ACS550 series, known for its energy efficiency and long-term reliability in demanding industrial processes. Typical applications include pumps, fans, conveyors, and compressors where reliable variable speed control is required. The 3-phase design ensures balanced power distribution and optimal performance across the specified voltage range.
- 250 HP (316A) output at 480VAC (380-480V range)
- NEMA 1 / UL Type 1 (IP21) enclosure for dust and debris protection
- Free-standing design with dimensions 83.7 x 31.7 x 25.9 inches, 793 lbs
- Integrated circuit breaker disconnect for enhanced safety
- 3-phase input/output with advanced control panel for precise motor control
Specifications
Package Dimensions (L x W x H) | 40 in x 34 in x 90 in |
Package Dimensions (L x W x H) | 101.6 cm x 86.36 cm x 228.6 cm |
Package Weight (Imperial) | 930.000 L |
Package Weight (Metric) | 421.848 kg |
