ABB - Low Voltage Drives
ACS55-01E-07A6-2
Alternate Item Number: 68884781
UPC: 662348041031
Documents & Media
Contact for Pricing
Overview

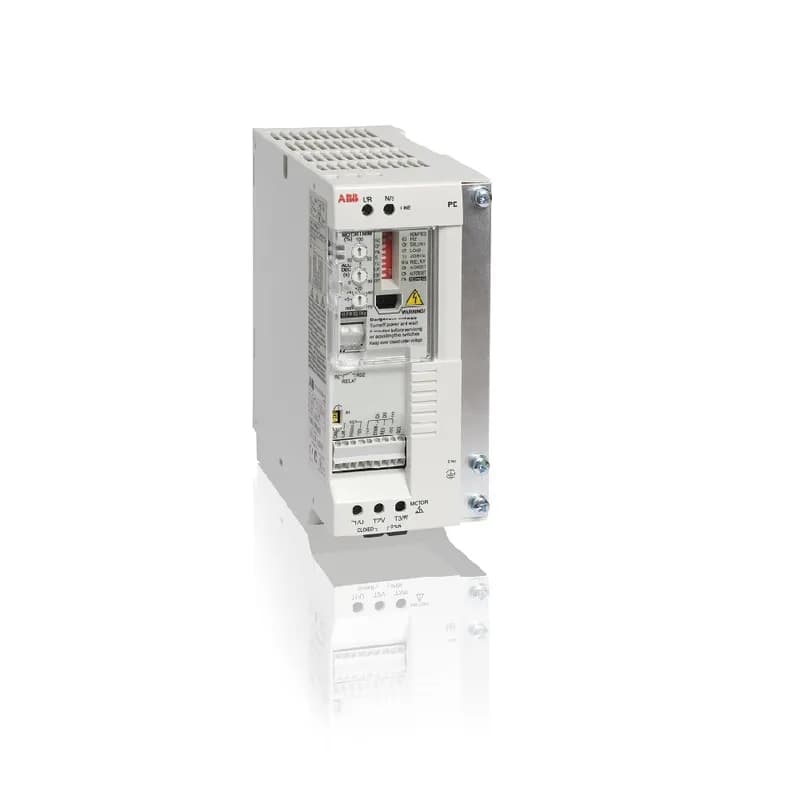

The ABB ACS55-01E-07A6-2 AC drive delivers compact, reliable motor control for low-voltage applications up to 2HP. Rated for 3-200-240V input, this open-type module handles 7.6A output with a 1.1 overload capacity, making it ideal for pumps, fans, and conveyor systems. Measuring just 6.69x2.76x6.26 inches, the ACS55 fits tight spaces without sacrificing performance. Its integrated design simplifies installation, reducing wiring and mounting complexity compared to traditional drives. Compatible with standard industrial motors, this drive supports energy-efficient operation while maintaining precise speed control. The open-type enclosure is designed for panel mounting in control cabinets, ensuring compatibility with existing infrastructure. With ABB’s proven reliability, the ACS55-01E-07A6-2 is a cost-effective solution for OEMs and end-users seeking durable, space-saving motor control.
- 2HP (1.5kW) power rating for 240V applications
- 7.6A output current with 1.1 overload capacity
- Compact open-type module (6.69x2.76x6.26 in) for space-constrained installations
- Input voltage range: 3-200-240V AC
- Integrated design for simplified installation and reduced wiring
Specifications
Control Panel | Integrated |
Current Rating | 7.6 A |
Frame Size | D |
Horsepower | 2 HP |
Input Phase | 3-Phase |
IP Rating | IP20 |
Mounting | Module |
Output Current | 7.6 A |
Output Phase | 3-Phase |
Series | ACS55 |
Size | 6.69x2.76x6.26 in |
UL Type | OPEN |
Voltage | 240 V |
Voltage Range | 200-240 V |
Voltage Rating | 3-200-240 VAC |
Package Dimensions (L x W x H) | 6.26 IN x 2.76 IN x 6.69 IN |
Package Dimensions (L x W x H) | 15.9004 cm x 7.0104 cm x 16.9926 cm |
Package Weight (Imperial) | 2.400 L |
Package Weight (Metric) | 1.089 kg |
