ABB - Low Voltage Drives
ACS355-03U-23A1-4
Alternate Item Number: 3AUA0000058222
UPC: 662348032565
Documents & Media
SALE: SAVE 10% OR MORE
Contact for Pricing
IN STOCK, READY TO SHIP
Overview

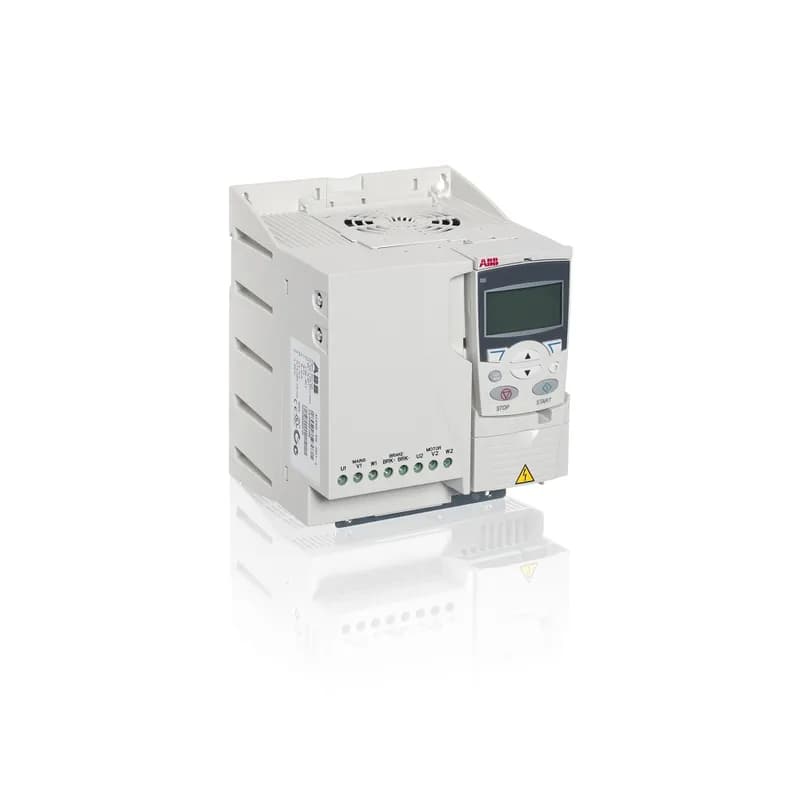

The ABB ACS355-03U-23A1-4 AC drive is engineered for precise speed control in pump and fan applications, offering robust performance with a 1.5x overload capacity. This open-type drive is rated for 15HP and 23.1A, with an input voltage range of 380-480V. Its compact module dimensions (9.29" H x 6.65" W x 6.65" D) facilitate easy integration into standard enclosures, making it ideal for OEMs. The ACS355 series is specifically designed for variable torque applications, contributing to significant energy savings of up to 30% compared to traditional methods like throttled valves or dampers. This drive supports efficient operation in HVAC, water treatment, and industrial ventilation systems where variable flow control is critical. For seamless integration, the ACS355 features blank faceplates and DIN rail mounting compatibility, along with support for Modbus RTU and other fieldbus protocols. ABB's drive tools are available for straightforward commissioning and diagnostics, ensuring operational efficiency and reliability. Manufactured in Denmark (DK) with UNSPSC code 39122001.
- 15HP / 23.1A rating for demanding pump and fan applications
- 380-480V input voltage for industrial power systems
- 1.5x overload capacity for variable torque demands
- Compact open-type module design for easy enclosure integration
- Energy-efficient operation reduces consumption up to 30%
Specifications
15 | HP |
23.1 | A |
3-Phase | A |
380-480 | VAC |
480 | VAC |
5.5 | lb |
6.65 | in |
9.29 | in |
Amerage | 23.1 A |
Color | Blue |
Control Panel | Blank |
Current Rating | 23.1 A |
Frame Size | R3 |
Frequency | 50/60 Hz |
Height | 9.29 in |
Horsepower | 15 HP |
Horsepower 10% & 50% Overload/ 1 min | 15 HP |
Input Phase | 3-Phase |
IP Rating | IP20 |
IP Rating | IP00 |
Length | 6.65 in |
Material | Poly |
Mounting | Module |
Mounting Type | Module |
Mounting Type | DIN Rail |
Nema Rating | Type OPEN |
Number of Phases Input | 3 |
Number of Phases Output | 3 |
Output Current | 23.1 A |
Output Current 10% & 50% Overload/ 1 min | 23.1 A |
Output Phase | 3-Phase |
Phases | 3-Phase A |
Series | ACS355 |
Size | 9.29x6.65x6.65 in |
Type | ACS355 Drive |
UL Type | OPEN |
Voltage | 480 V |
Voltage Range | 380-480 V |
Voltage Rating | 380-480 VAC |
Voltage Rating | 380-480 V |
Voltage Rating | 480 VAC |
Weight | 5.5 lb |
Width | 6.65 in |
Package Dimensions (L x W x H) | 6.65 IN x 6.65 IN x 9.29 IN |
Package Dimensions (L x W x H) | 16.891 cm x 16.891 cm x 23.5966 cm |
Package Weight (Imperial) | 5.500 L |
Package Weight (Metric) | 2.495 kg |
FENA-21
The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.
