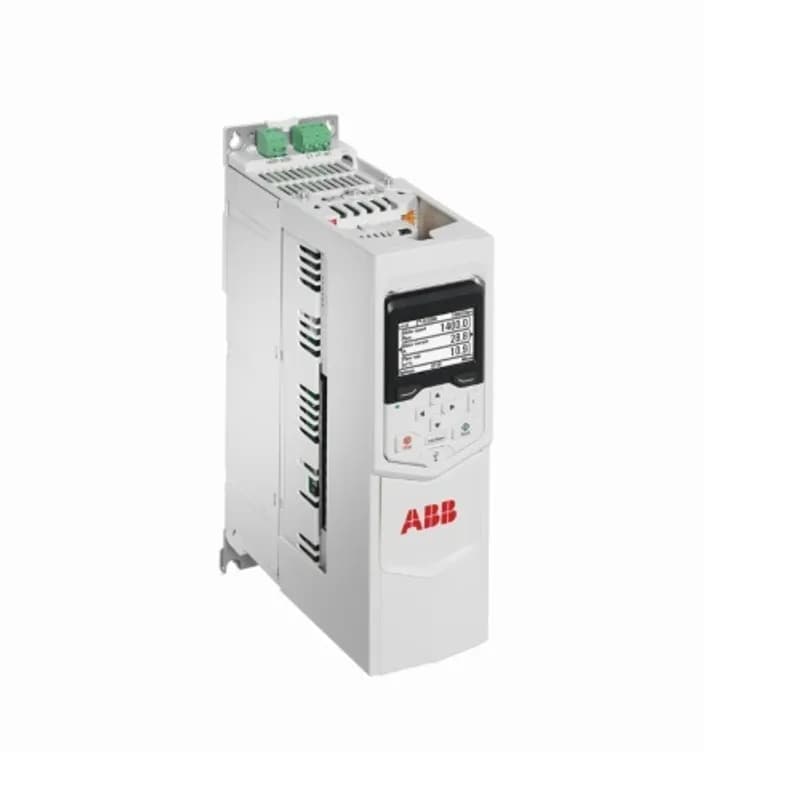

ABB - Low Voltage Drives ACS310-03U-02A6-4+J404 - ACS310 AC Drive, 3-380-480V In, 1HP, 2.6A, Type OPEN, 1.1 overload, Basic, HxWxD 9.41x2.76x6.34 in, Module

ABB Low Voltage Drives ACS310-03U-02A6-4+J404 ACS310 AC Drive, 3-380-480V In, 1HP, 2.6A, Type OPEN, 1.1 overload, Basic, HxWxD…

Alternate Item Number: 3AUA0000062549

UPC: 662348003473

Documents & Media
Specification Sheet

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ACS310-03U-02A6-4+J404 is a compact AC drive specifically designed for pump and fan applications, delivering effortless performance without requiring high overload capacity. This unit operates on an input voltage range of 380-480V and provides a 1HP output with a current rating of 2.6A. Its Type OPEN designation indicates its enclosure type. The drive features a 1.1 overload capability, suitable for the typical load profiles of centrifugal pumps and fans. The basic functionality of this module ensures straightforward integration and operation. With physical dimensions of 9.41 inches in height, 2.76 inches in width, and 6.34 inches in depth (HxWxD), the ACS310-03U-02A6-4+J404 is designed for efficient space utilization in control panels. This ABB Low Voltage Drives product (SKU: ACS310-03U-02A6-4+J404) is an ideal choice for applications where consistent and reliable speed control is paramount for HVAC systems, water management, and other fan/pump-driven processes, optimizing energy consumption and operational efficiency. Its UNSPSC code is 39122001.
  • ABB ACS310 AC Drive for pump and fan applications
  • 1HP motor power, 2.6A current rating
  • Input voltage range: 380-480V
  • 1.1 overload capability
  • Compact dimensions: 9.41" H x 2.76" W x 6.34" D

Specifications

Control Panel
Basic
Frame Size
R1
Horsepower
1 HP
Input Phase
3-Phase
IP Rating
IP20
Mounting
Module
Output Current
2.6 A
Output Phase
3-Phase
UL Type
OPEN
Voltage
480 V
Voltage Range
380-480 V
Package Dimensions (L x W x H)
6.34 IN x 2.76 IN x 9.41 IN
Package Dimensions (L x W x H)
16.1036 cm x 7.0104 cm x 23.9014 cm
Package Weight (Imperial)
2.600 L
Package Weight (Metric)
1.179 kg
600V Class Iron Core Reactor, Core and Coil, 11 Amps, 2.57 Inductance, 60 Hz

CRX0011AC

600V Class Iron Core Reactor, Core and Coil, 11 Amps, 2.57 Inductance, 60 Hz
Double plastic fiber optic, Qty 1, 5 meters long

61059113

Double plastic fiber optic, Qty 1, 5 meters long
The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.

FENA-21

The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.
KDR, 208V, 19A, 5HP

KDRB22L

KDR, 208V, 19A, 5HP

Frequently Asked Questions

What are the voltage and power ranges for ACS310 drives?

ACS310 drives are available in 1-phase (200-240V, 0.5-3 hp) and 3-phase (200-240V, 0.5-15 hp; 380-480V, 0.5-30 hp).

What types of motors are compatible with ACS310 drives?

The ACS310 drives are compatible with asynchronous induction motors.

What is the maximum ambient temperature for ACS310 drives?

The maximum ambient temperature for ACS310 drives is 122 °F (-10 to +50 °C), with no frost allowed.

What are the built-in energy efficiency features of ACS310 drives?

ACS310 drives feature built-in energy calculators, an energy optimizer, a load analyzer, and software-controlled fans for efficiency.

What are the applications for ACS310 drives?

ACS310 drives are dedicated to variable torque applications such as booster pumps and centrifugal fans.

What serial communication options are available for ACS310 drives?

ACS310 drives support Modbus RTU EIA-485 and EIA-232, and Modbus TCP with the SREA-01 option module.

What is the switching frequency range for ACS310 drives?

The switching frequency for ACS310 drives can be set to 4, 8, 12, and 16 kHz, with derating.

What are the available control panel options for ACS310 drives?

Optional control panels include Basic and Assistant control panels.

What is the degree of protection for ACS310 drives?

The ACS310 drives have a degree of protection of IP20, with an optional NEMA 1 enclosure available.
