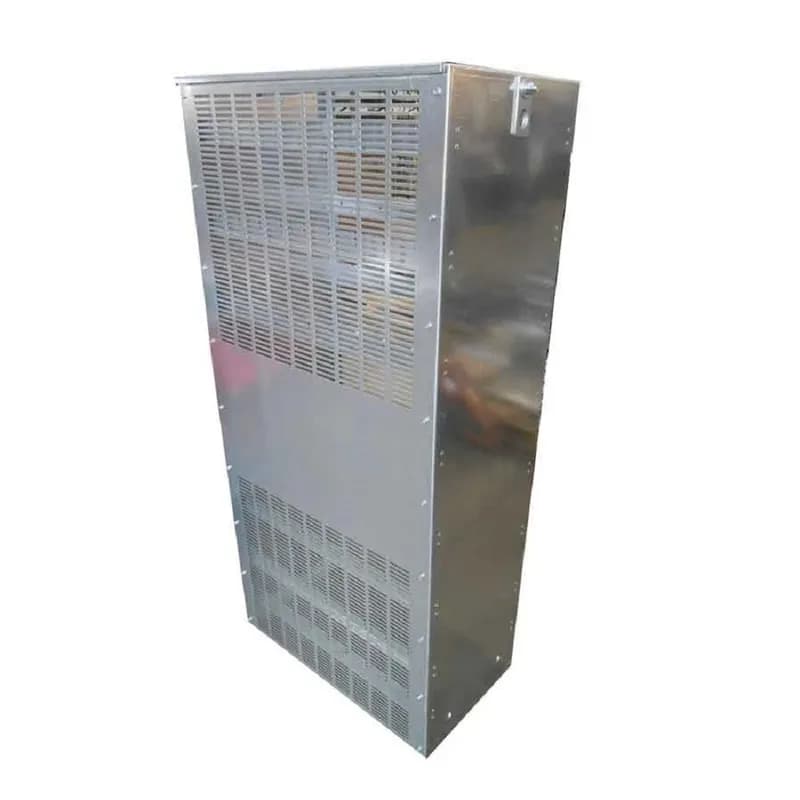

ABB - Low Voltage Drives ABB-48431-456 - Braking Resistor, 1.35 OHMS, 91260 WATTS, ED7 Enclosure, 30W x 18D x 56H in, 442 lbs
ABB - Low Voltage Drives

ABB-48431-456

Alternate Item Number: 3AUA0000015438

UPC: 662348002100

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The ABB Braking Resistor (SKU: ABB-48431-456) is a high-power dynamic braking solution for industrial drive systems. With a resistance of 1.35 ohms and a power rating of 91,260 watts, it safely dissipates excess energy during deceleration, preventing voltage spikes that can damage drives. The ED7-rated enclosure provides IP54 protection against dust and water ingress, ensuring reliable operation in harsh environments like manufacturing plants, material handling systems, and heavy machinery. Measuring 30 inches wide, 18 inches deep, and 56 inches high, this resistor is designed for integration into existing control panels or standalone mounting. Weighing 442 pounds, it includes robust mounting provisions for secure installation. Compatible with ABB low-voltage drives, this resistor supports dynamic braking in applications requiring precise speed control and energy recovery. Its compact footprint and high power density make it ideal for retrofitting older systems or new installations where space and reliability are critical.
  • Resistance: 1.35 ohms for precise energy dissipation
  • Power rating: 91,260 watts (91.26 kW) continuous duty
  • Enclosure: ED7-rated for IP54 protection against dust and water
  • Dimensions: 30W x 18D x 56H inches (762 x 457 x 1422 mm)
  • Weight: 442 lbs (200 kg) with robust mounting provisions

Specifications

Nema Rating
ED7
Size
30W x 18D x 56H in
