Contact for Pricing
Overview
- 304 stainless steel construction for corrosion resistance
- 72×72×24 inch footprint for ample equipment space
- N4X NEMA rating for dust and liquid protection
- Floormount design for easy installation and maintenance
- Hammond Manufacturing quality and precision
Specifications
Application | Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem. |
Brand Name | Hammond Mfg. |
Color | Unpainted |
Cubic Capacity | 128330.911782 Cubic in |
Cubic Capacity | 128330.911782 in3 |
Material | Stainless Steel |
Mounting | FLOOR |
NEMA Rating | type-3r, type-13, type-4x |
NEMA Rating | 13;3R;4X |
Size | 72.13 in x 72.06 in x 24.69 in |
Special Features | Formed 12 gauge 304 or 316 stainless steel. Smooth, continuously welded seams without knockouts, cutouts or holes. Body stiffeners are provided in the larger enclosures for extra rigidity. Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles. Center post is removable for easy installation of the inner panel. Formed lip on door and top of enclosure opening exclude flowing liquids and contaminants. Continuously hinged doors may be removed by pulling the stainless steel hinge pin. Doors are secured with heavy duty stainless steel clamps. Provision for padlocking. 12" floor stands are welded to the enclosure. Seamless poured-in place gasket. Panel supports are provided for easy panel installation. Collar studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door. A literature pocket is provided. |
Standard | csa, ul, ce |
Sub Brand | 1422 N4 SS Series |

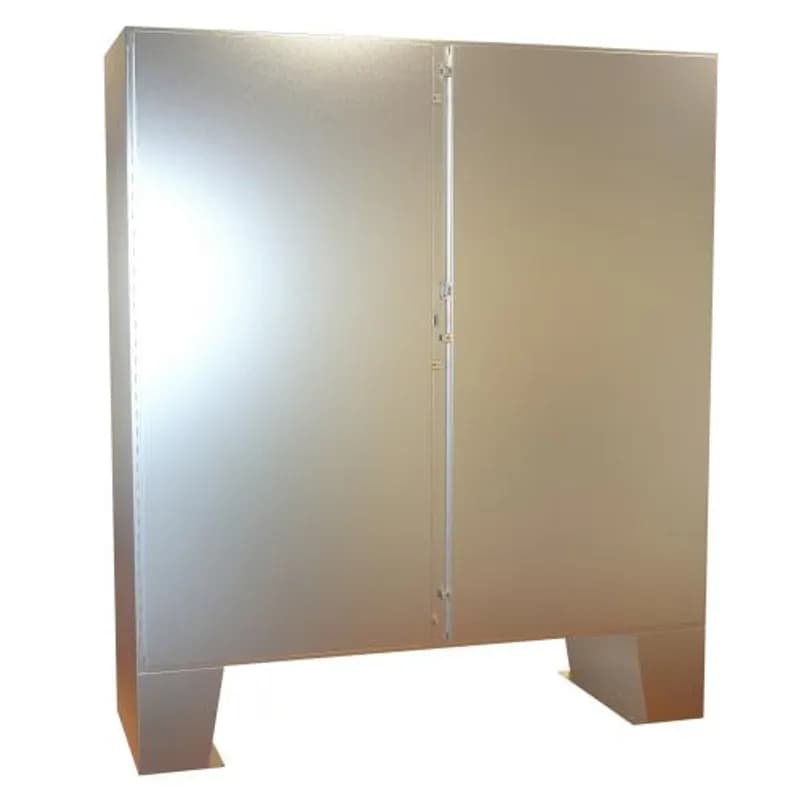

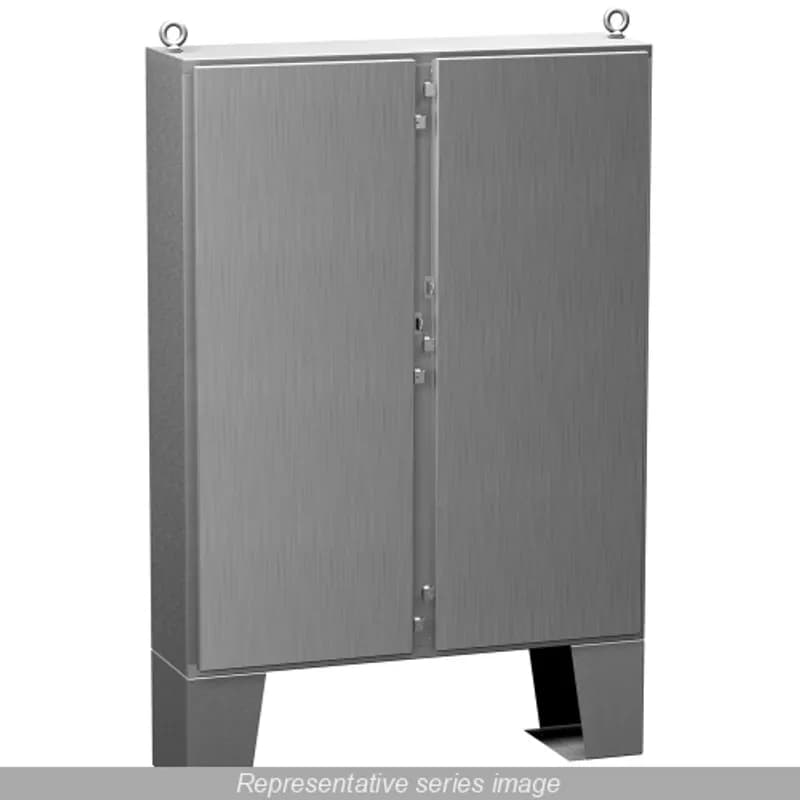

Type | Type 4X Stainless Steel Two Door Floormount Enclosure |
Package Dimensions (L x W x H) | 27.16 IN x 79.27 IN x 79.34 IN |
Package Dimensions (L x W x H) | 68.9864 cm x 201.3458 cm x 201.5236 cm |
Package Weight (Imperial) | 925.000 L |
Package Weight (Metric) | 419.580 kg |
