Contact for Pricing

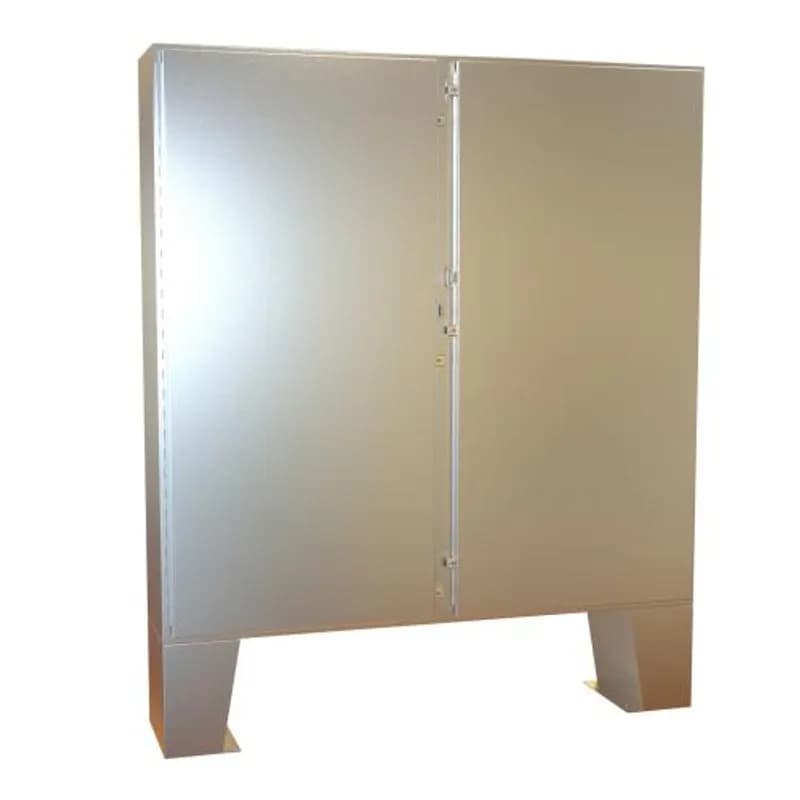

Overview
- 316 SS stainless steel construction for corrosion resistance.
- N4X NEMA rating ensures protection against dust, moisture, and impact.
- Double‑door design allows easy access while maintaining enclosure integrity.
- Floor‑mount installation with 60×60×12‑inch dimensions for versatile placement.
- Manufactured by Hammond Manufacturing, SKU 1422N4S16D12F for traceability.
Specifications
Application | Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem. |
Brand Name | Hammond Mfg. |
Color | Unpainted |
Cubic Capacity | 45828.764982 in3 |
Cubic Capacity | 45828.764982 Cubic in |
Material | Stainless Steel |
Material | 316 Stainless Steel |
Mounting | FLOOR |
Mounting Type | Floor-Mount |
NEMA Rating | type-3r, type-13, type-4x |
NEMA Rating | 13;3R;4X |
Nema Rating | N4X |
Size | 60.13 in x 60.06 in x 12.69 in |
Size | 60 x 60 x 12 inches |
Special Features | Formed 12 gauge 304 or 316 stainless steel. Smooth, continuously welded seams without knockouts, cutouts or holes. Body stiffeners are provided in the larger enclosures for extra rigidity. Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles. Center post is removable for easy installation of the inner panel. Formed lip on door and top of enclosure opening exclude flowing liquids and contaminants. Continuously hinged doors may be removed by pulling the stainless steel hinge pin. Doors are secured with heavy duty stainless steel clamps. Provision for padlocking. 12" floor stands are welded to the enclosure. Seamless poured-in place gasket. Panel supports are provided for easy panel installation. Collar studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door. A literature pocket is provided. |
Standard | csa, ul, ce |
Sub Brand | 1422 N4 SS Series |
Type | Type 4X Stainless Steel Two Door Floormount Enclosure |
Package Dimensions (L x W x H) | 13.96 IN x 66.07 IN x 66.14 IN |
Package Dimensions (L x W x H) | 35.4584 cm x 167.8178 cm x 167.9956 cm |
Package Weight (Imperial) | 570.000 L |
Package Weight (Metric) | 258.552 kg |
Similar Products
1422N4S16B12F
Cubic Capacity: 36672.168582 Cubic in
Size: 60.13 in x 48.06 in x 12.69 in
Cubic Capacity: 36672.168582 in3
1422N4S16B12FQT
Cubic Capacity: 36672.168582 Cubic in
Size: 60.13 in x 48.06 in x 12.69 in
Sub Brand: 1422 N4 QT SS Series

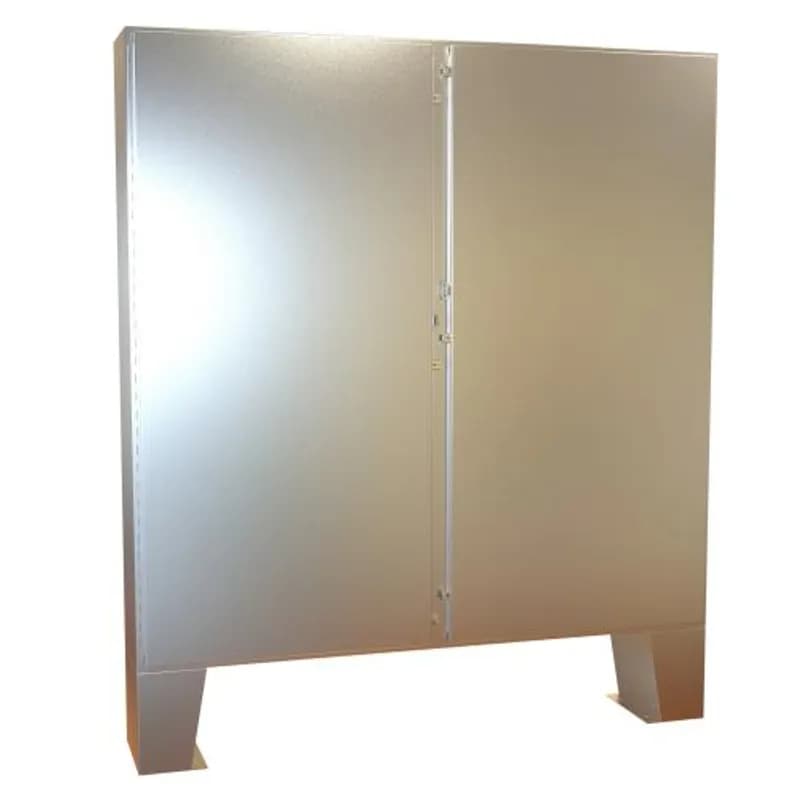

1422N4S16E12F
