Contact for Pricing
Overview

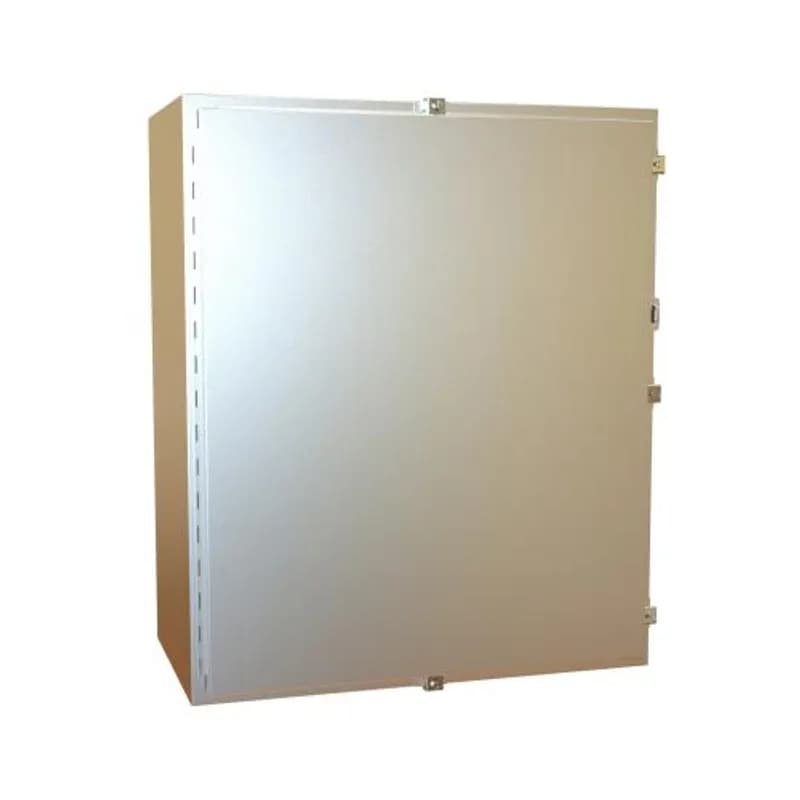

- 316 stainless steel construction for superior corrosion resistance
- 36" x 30" x 16" exterior dimensions with ample internal space
- NEMA 4X rated for protection against dust, water, and harsh chemicals
- Wallmount design for secure vertical installation
- Manufactured in the US with UNSPSC code 39121324
Specifications
Application | Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem |
Brand Name | Hammond Mfg. |
Color | Unpainted |
Cubic Capacity | 17280 Cubic in |
Cubic Capacity | 17280 in3 |
IP Rating | IP66 |
Material | Stainless Steel |
Material | 316 Stainless Steel |
Mounting | Wall |
Mounting Type | Wallmount |
NEMA Rating | type-3r, type-13, type-4x |
Nema Rating | Type 4X |
NEMA Rating | 13;3R;4X |
Series | N4X |
Size | 36" x 30" x 16" |
Size | 36 x 30 x 16 inches |
Size | 36 in x 30 in x 16 in |
Special Features | Formed 14 gauge 304 or 316 stainless steel. Smooth, continuously welded seams without knockouts, cutouts or holes. Door stiffeners are provided in the larger enclosures for extra rigidity. Welded brackets provide for enclosure mounting. Formed lip on door and enclosure excludes flowing liquids and contaminants. Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin. Door is secured with easily operated stainless steel clamps. Provision for padlocking. Seamless poured-in place gasket. A removable 12 gauge inner panel is included. Collar studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided in the enclosure. A literature pocket is provided for the inside of the door. |
Standard | csa, ul, ce |
Sub Brand | 1418 N4 SS Series |
Type | Type 4X Stainless Steel Wallmount Enclosure |
Package Dimensions (L x W x H) | 17.6 IN x 33 IN x 39.6 IN |
Package Dimensions (L x W x H) | 44.704 cm x 83.82 cm x 100.584 cm |
Package Weight (Imperial) | 149.000 L |
Package Weight (Metric) | 67.586 kg |
